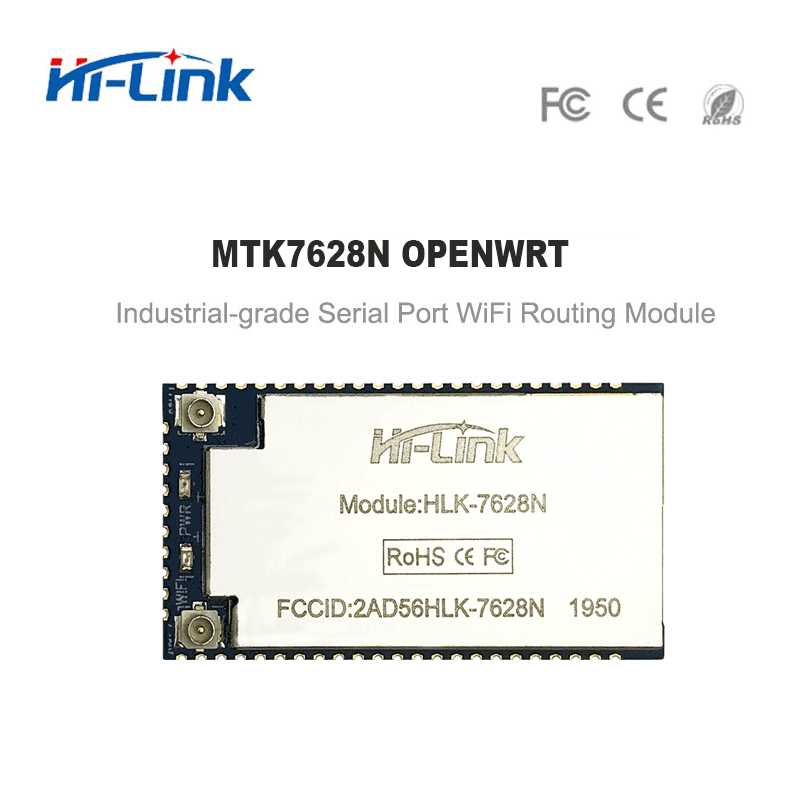

MT7628N Ethernet Wifi Wireless OpenWrt Router module Dual Antena 128MBRAM 32MB FLASH HLK-7628N

  • Visitor
    7871
  • Buycount:
  • Price
    $8.30

7628N various verson lable

Download Files

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU



Introduciton

HLK-7628N based on MT7628AN is a low cost and low power consumption IOT module developed by HiLink. This module leads to all the interfaces of MT7628NN,The module supports Linux, OpenWRT operating  system and custom development. It could be widely applied to smart devices or cloud services application with  its rich interface and powerful processors, at the same time ,it also support secondary development.


Features

  • High data processing ability,MCU frequency 580MHz

  • 300M Mbps

  • Support 802.11b/g/n

  • 20/40 Channel bandwidth

  • Support 802.11v

  • Support AP,STA and AP,STA mixed

  • Five 10/100M ETH PORT

  • 1 USB2.0 Host interface port

  • Interface SPI/SD-XC/eMMC

  • Rich peripheral interfaces,SPI,I2C,I2S,PCM,UART,JTAG,GPIO

  • Widely used in IOT

  • Inbuilt powerful PMU

  • Support 16 Multiple BSSID

  • Support multiple security methods WEP64/128, TKIP,AES, WPA, WPA2, WAPI

  • Support QoS,WMM,WMM-PS

  • Support Linux 2.6.36 SDK,OpenWrt 3.10


Diagram

7628N DIAGRAM (1)



Typical Application

7628N-1


Specifications


ItemParameterNote
Model HLK-7628N Version V1.0
Chip MT7628AN/MT7628NN
Kernel MIPS24KEc
Basic frequency580MHz
RAM DDR2 128MB Customizable DDR2  64M/32MB
Flash 32MB Customizable 16MB/8MB
Temperature Environment temperature-40~85
Humidity

Working10~95%noncondensing

Storage5~95%noncondensing


Size 18mm×35.2mm×2.8mm
