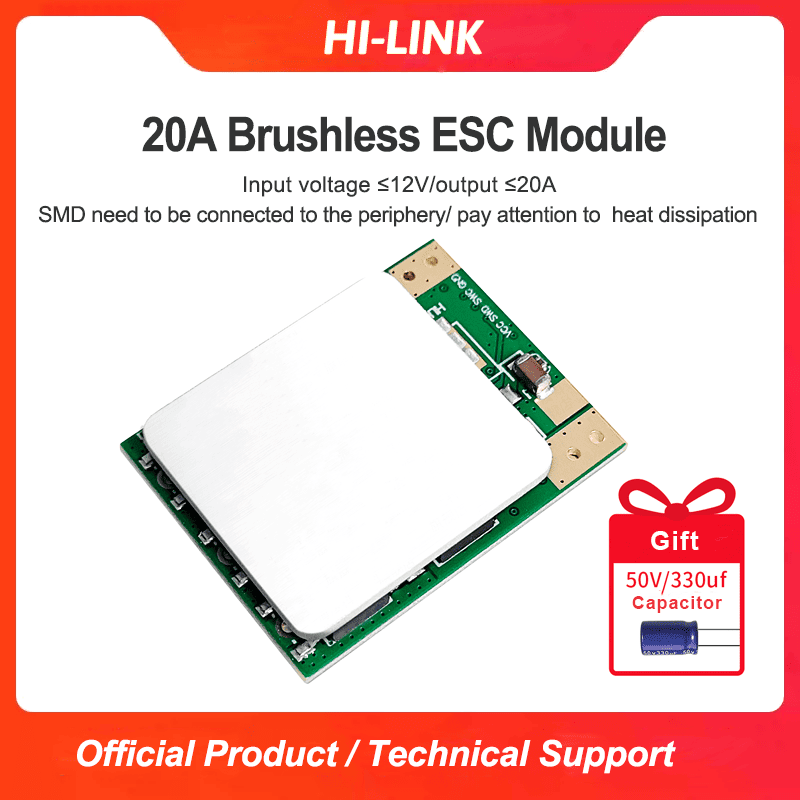

1. Product Description

HLK-DL04A is a high-power DC brushless motor electronic speed regulation module developed by Hailingke Electronics.

• Output performance: 20A

• Power input: 12V

• Control signal type: PWM

• Throttle signal frequency range: 50HZ-400HZ

• Signal pulse width: 0.9ms-2ms










2. Product features and advantages

2.1 Characteristics

• High power

• High current

• Heat sink

• Easy and flexible installation

• Compact and simplified

• The ultimate cost-effective choice

2.2 Advantages of the Plan

• The working voltage of HLK-DL04A is 12V DC, and it can support up to 20A current output depending on the motor model and propeller model. Peak power the power consumption can reach up to 240W. The factory comes with heat sinks, which can work stably and continuously under 12V/10A power consumption. Power consumption above 12V/10A can be easily increased modify the heat dissipation scheme by adding heat sinks. High cost-effectiveness

3. Application

• model aircraft

• fan

• Automotive Turbine

• fan

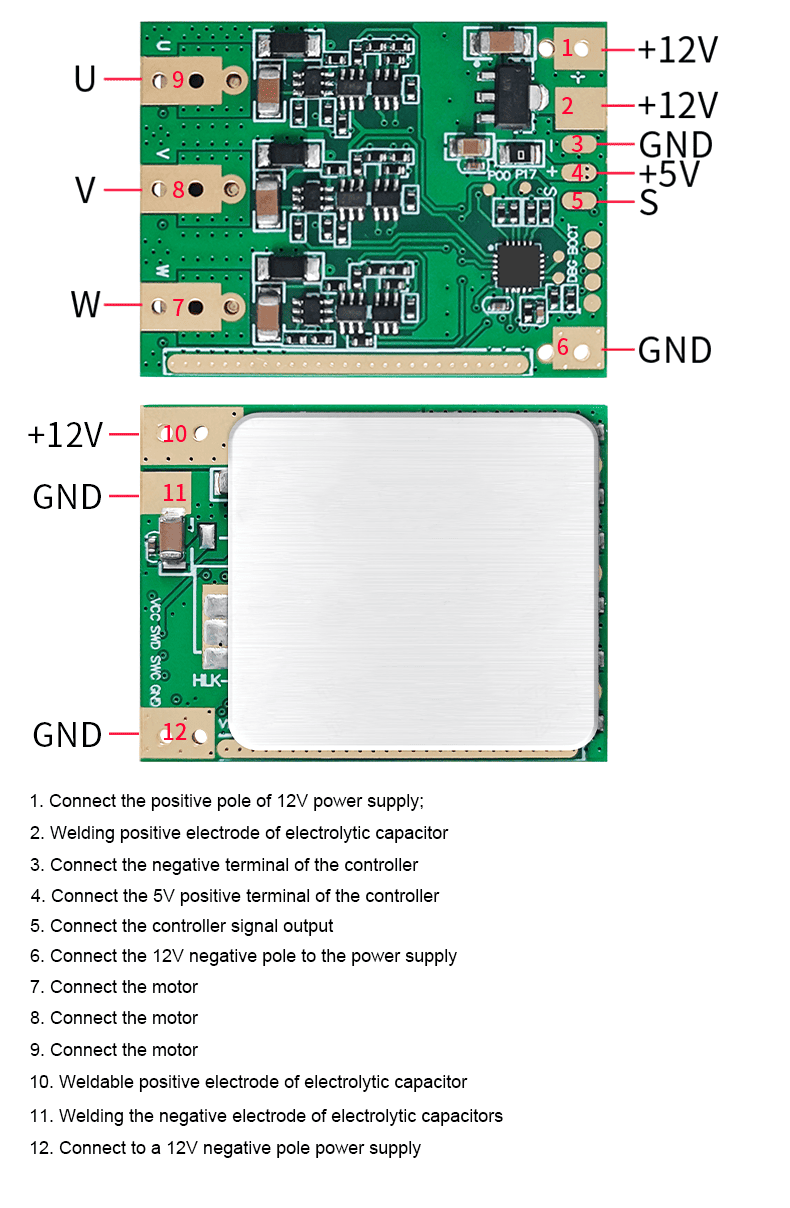

4. Pin Introduction
