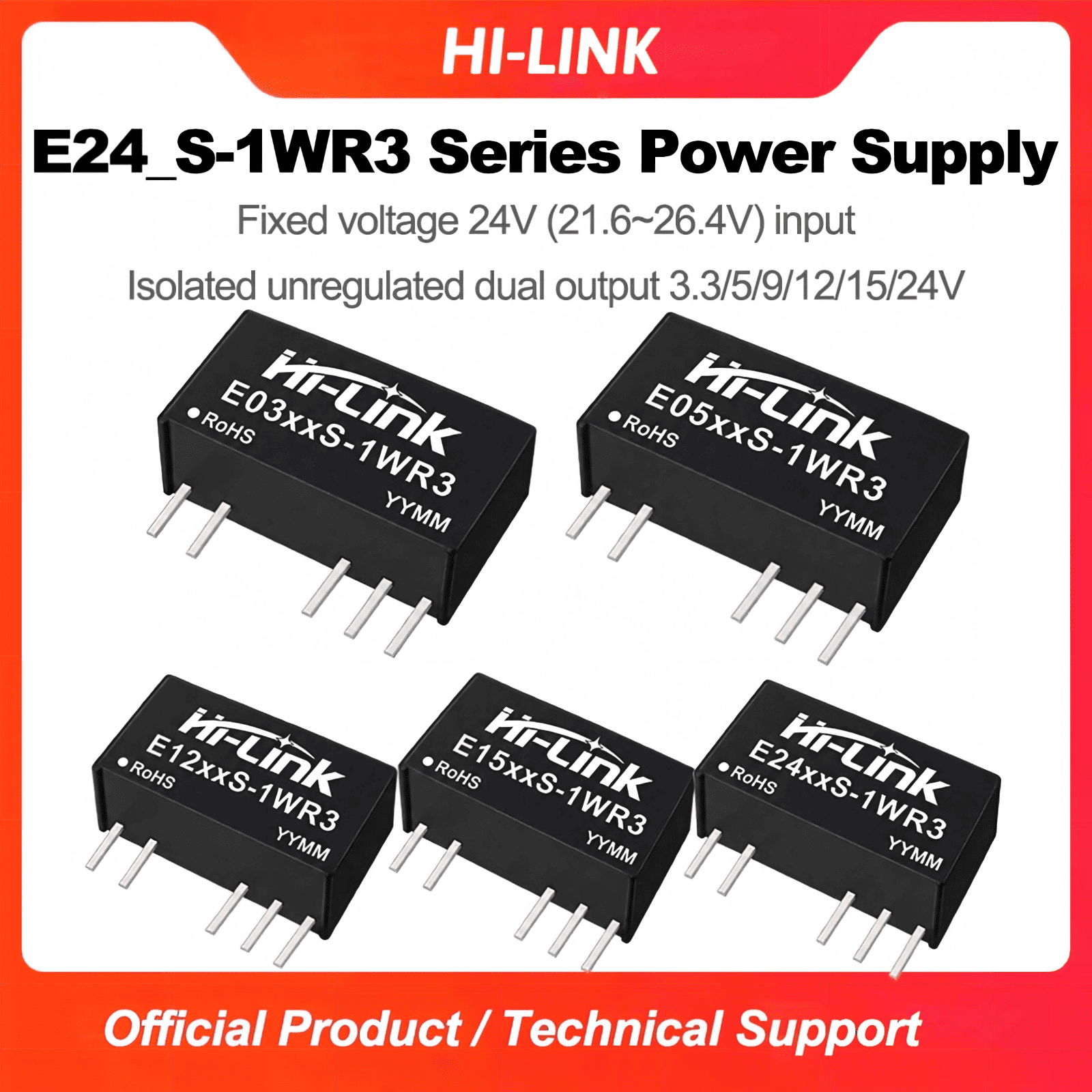

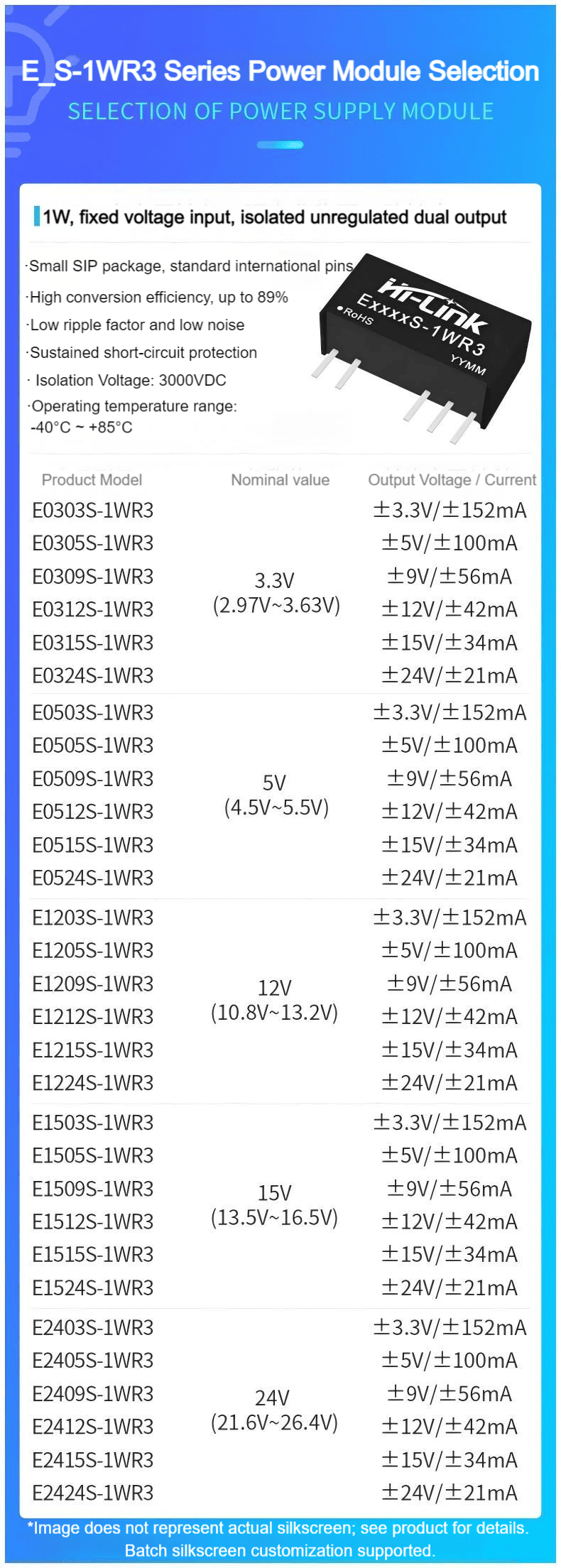

E2405S-1WR3 E2403S/E2409S/E2412S/E2415S/E2424S-1WR3 3KV isolated DC DC power converter module
-
Visitor16
-
Buycount：
-
Price$1.06
Product Feature
1. characteristic:Constant voltage input, isolated non stabilized voltage single output,3W
2. Isolation voltage 3000VDC
3. Transfer efficiency up to 89%
4. Output short-circuit protection: continuous short circuit protection, automatic recovery
5. The voltage of the input power supply is relatively stable.（Voltage variation range±10%Vin）
6. Operating temperature range ：-40°C~+85°C

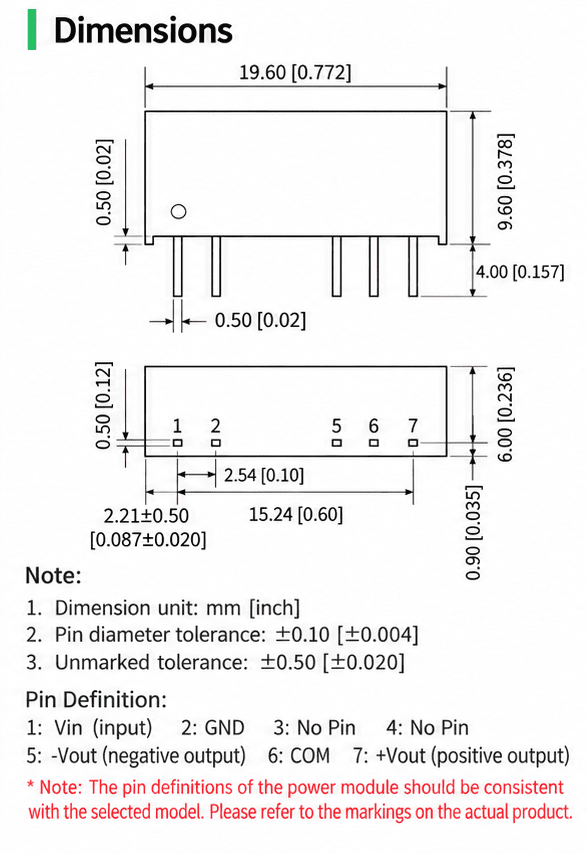

7. Small SIP package

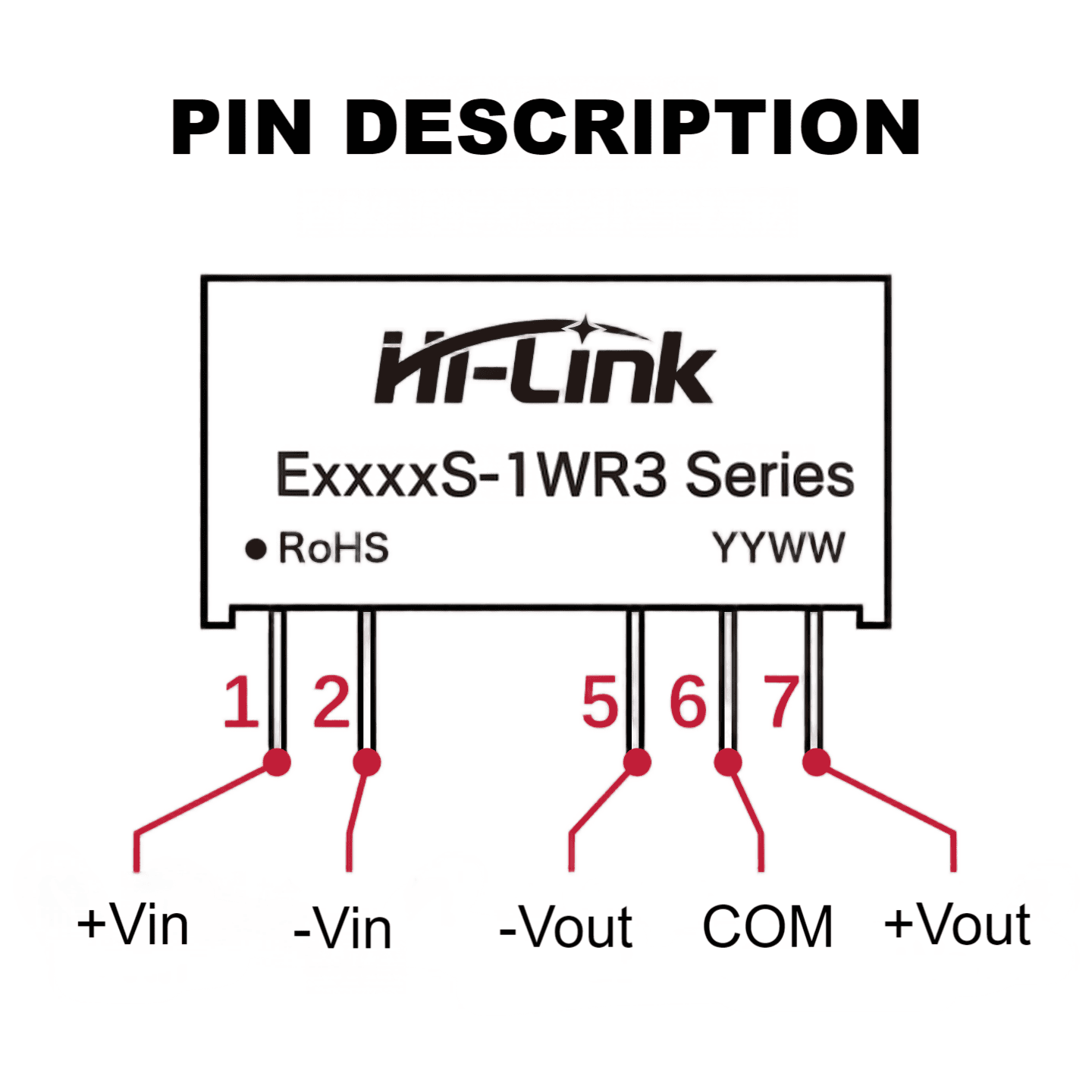

8. International standard pin，direct installation of PCB board.
9. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)
General characteristic
| Project name | Qualification | Unit | Notes |
| Working enviroment temperature | -40—+85 | ℃ | |
| Storage temperture | -40—+125 ℃ | ℃ | |
| Relative humidity | 5—95 | % | |
| Heat dissipation mode | natural cooling | ||
| Atmospheric pressure | 80—106 Kpa | Kpa | |
| Ripple & Noise | 30/80(max) | Mvp-p |
Input Characteristics
| Item | Working conditions | Min. | Typ. | Max. | Unit |
| Input current (full load/no load) | 3.3VDC Input Series | -- | 370/3 | --/15 | m'A |
| 5VDC Input Series | -- | 235/3 | --/15 | ||
| 12VDC Input Series | -- | 99/3 | --/15 | ||
| 15VDC Input Series | -- | 99/3 | --/15 | ||
| 24VDC Input Series | -- | 51/3 | -- | ||
| Reflection ripple current | -- | 15 | -- | m'A | |
| Impulse voltage | 3.3VDC Input Series | -0.7 | -- | 5 | VDC |
| 5VDC Input Series | -0.7 | -- | 9 | ||
| 12VDC Input Series | -0.7 | -- | 18 | ||
| 15VDC Input Series | -0.7 | -- | 21 | ||
| 24VDC Input Series | -0.7 | -- | 30 | ||
| Input filter type | Capacitance filter type | ||||
| Hot plugged | Non-support | ||||
Output Characteristics

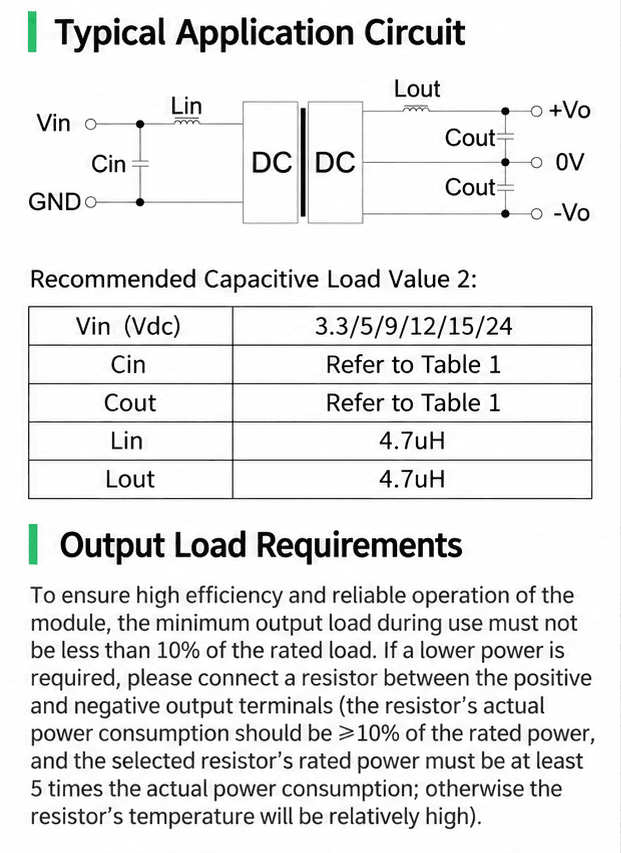

| Project name | Working and testing condition | Min. | Typ. | Max. | Unit | |
| Output load | load percentage | 10 | -- | 100 | % | |

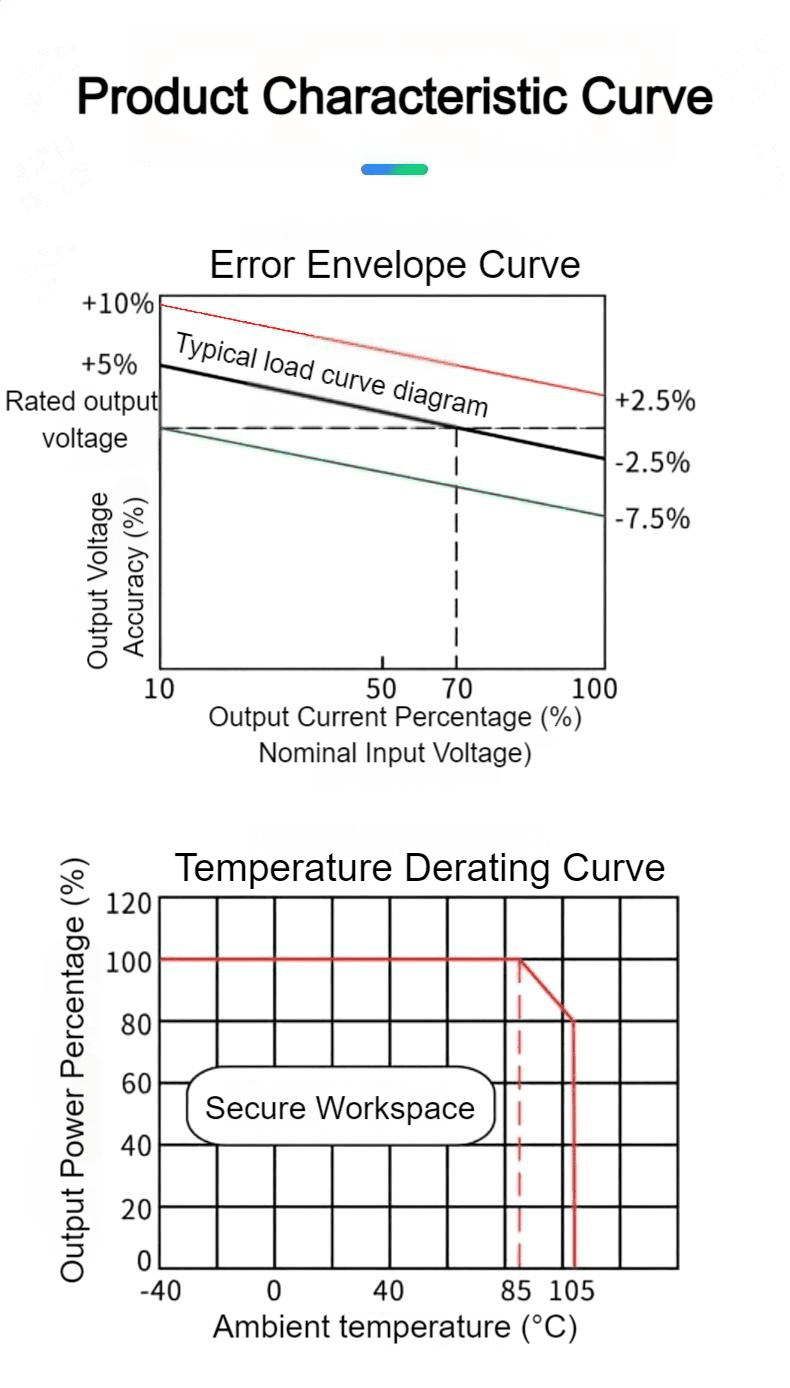

| Output Voltage Accuracy | See Error Envelope Curve | -- | -- | ±15.0 | % | |
| Linear adjustment rate | Input voltage variation ±1% | 3.3V Input | -- | -- | ±1.5 | % |
| others | -- | -- | ±1.2 | % | ||
| Load adjustment rate | 10%~100% load | 3.3VDC Output | -- | 10 | -- | % |
| 5VDC Output | -- | 8 | -- | % | ||
| 9VDC Output | -- | 8 | -- | % | ||
| 12VDC Output | -- | 7 | -- | % | ||
| 15VDC Output | -- | 6 | -- | % | ||
| 24VDC Output | -- | 6 | -- | % | ||
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 45 | 100 | mVp-p | |
| Temperature Drift Coefficient | Full load | -- | -- | ±0.03 | %/℃ | |
| Output short circuit protection | Continuous short circuit protection, automatic recovery | -- | ||||

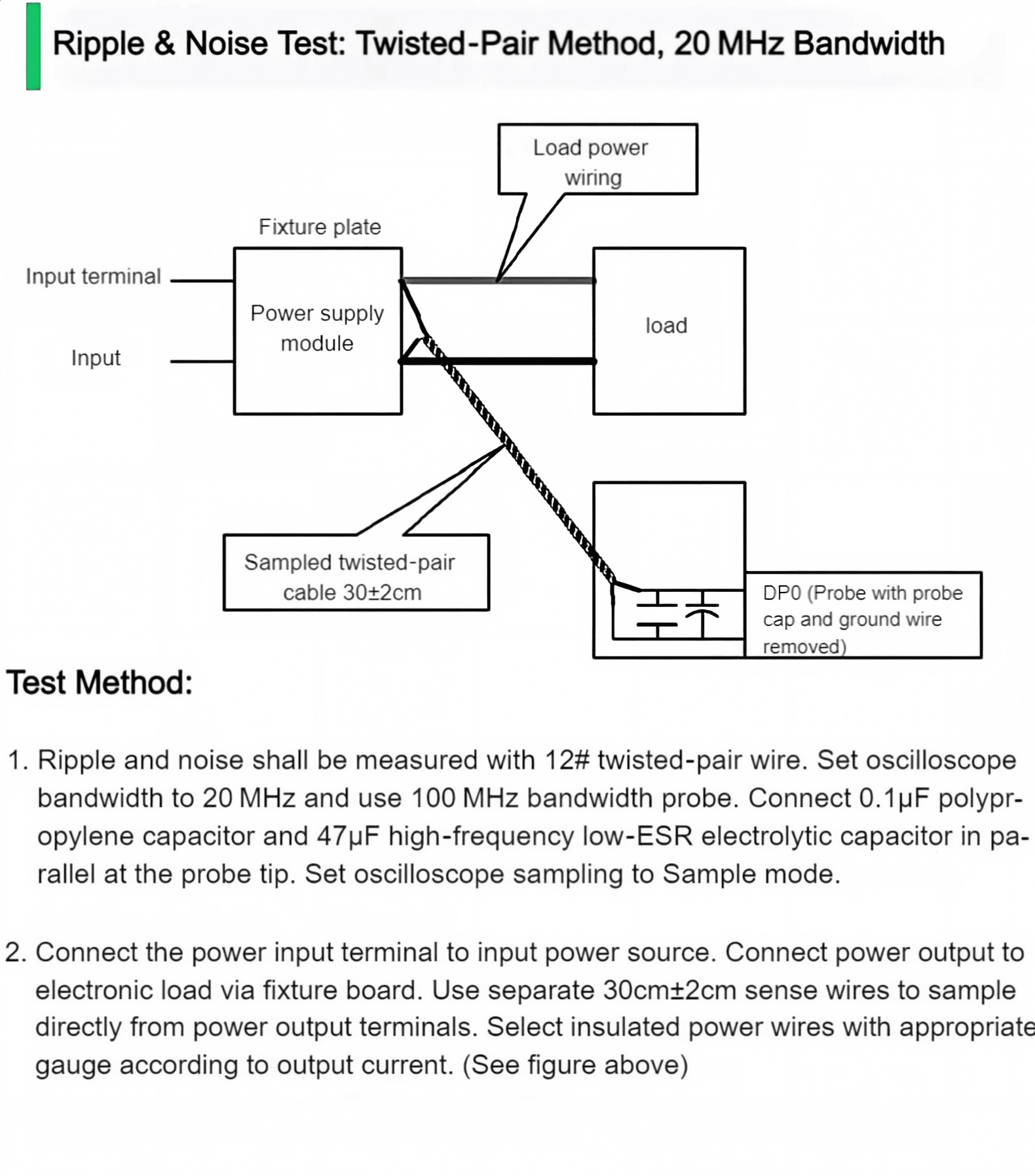

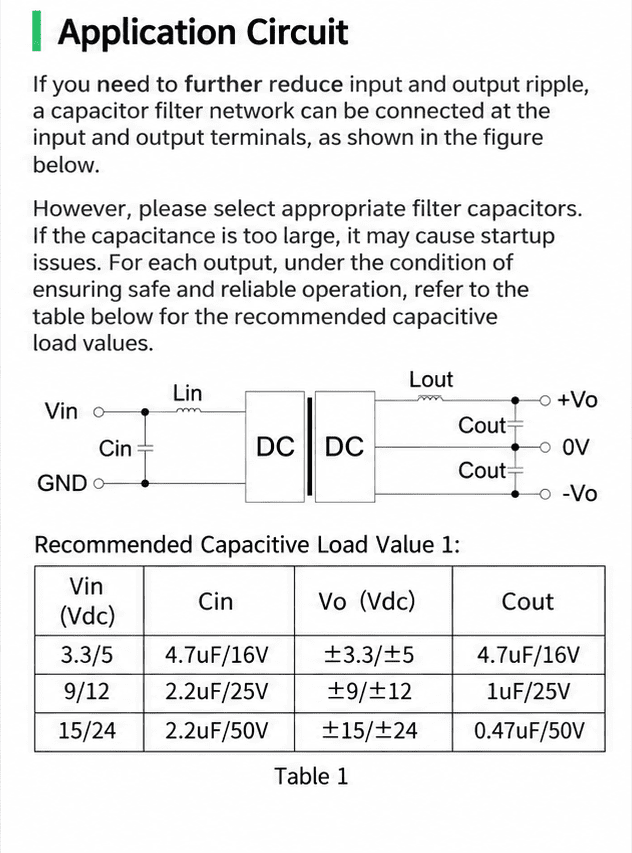

| Notes: Ripple and Noise Test Methods Twisted Pair Test Method | ||||||
