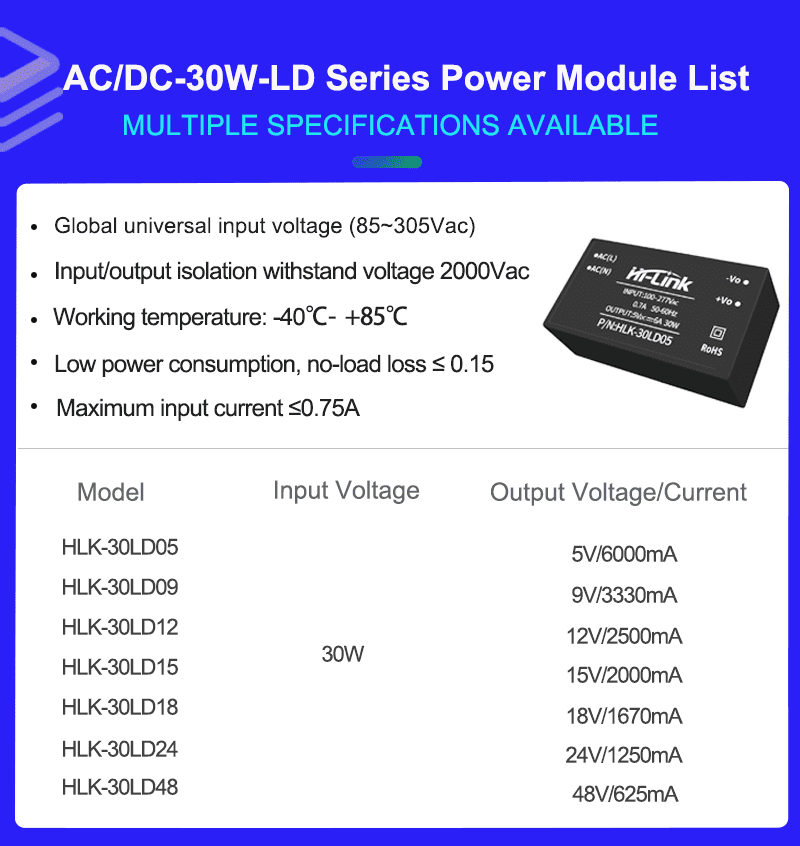

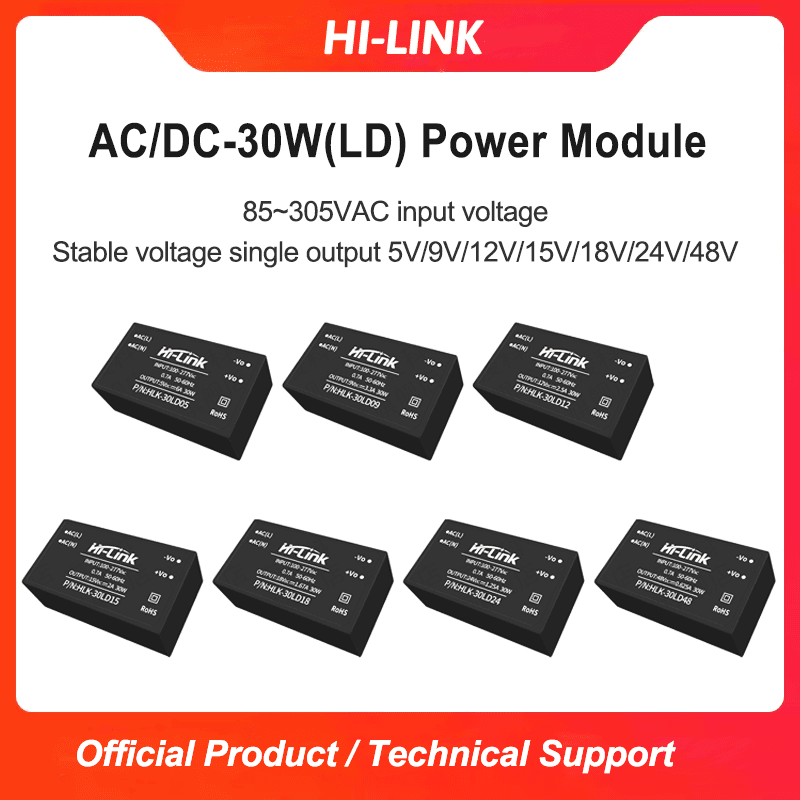

ACDC power module input 85~305VAC/100~430VDC 220V to 5V12V isolated voltage reduction and stabilization HLK-30LD05/09/12/15/18/24/48V
-
Visitor39
-
Buycount：
-
Price$4.25
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view

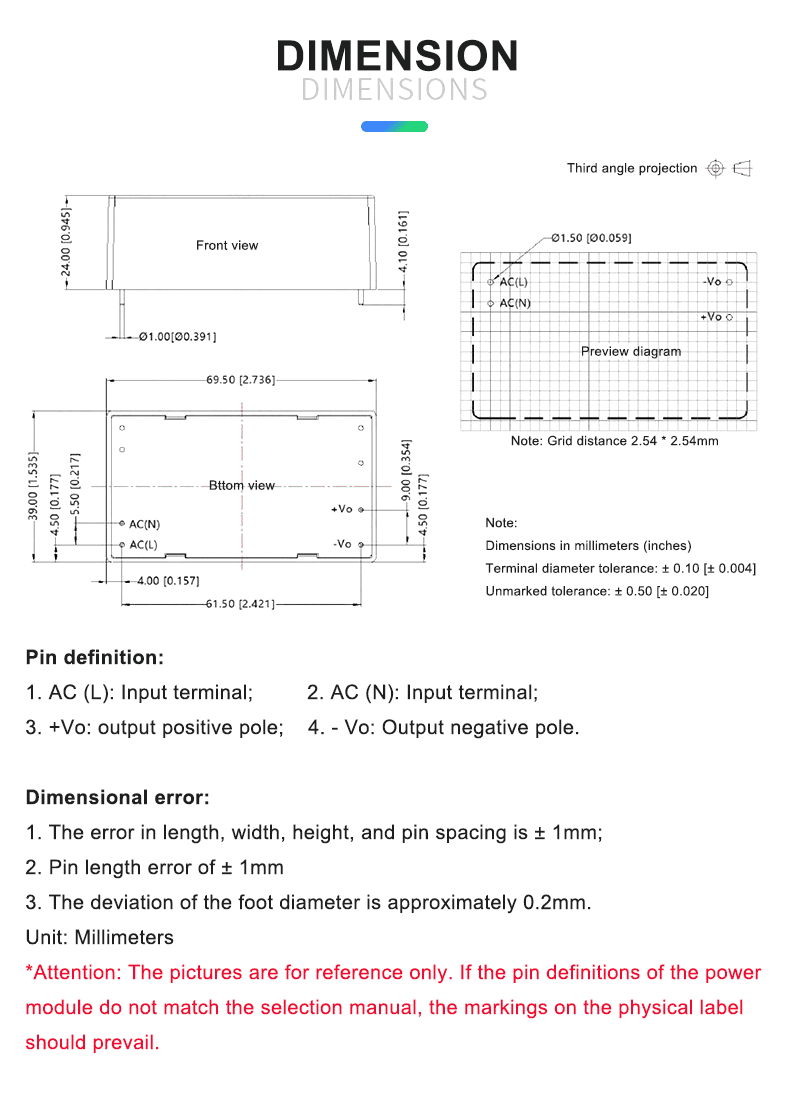

Product Features
Global universal input voltage(85-305Vac)
Input and output isolation voltage 2000VAC
Low power consumption, green enviroment protection, no-load loss＜0.15W
High efficiency, high power density
Long life design, continuous working time is greater then 100,000hours
High output-quality environmentally friendly waterproof thermal conductive glue potting, dustproof,moisture-proof, shockproof, flame-retardant
Meet UL/CE/EMC and safety testing requirenments
Can be used in medical, industrial control, electric power, instrumentation, communication,railway and other fields
Environment Condition
| Working Temerature | -40—+85 ℃ |
| Storage temperature | -40—+80 ℃ |
| Relative humidity | 5—95 % |
| Thermal methods | Natural cooling |
| Atmospheric pressure | 80—106 Kpa |
| Altitude | ≤5000 m |
| Vibration coefficient | 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes. |
Input Features( test at room temperature)
| Rated input voltage | 100-277Vac |
| Input vlotage range | 85-305VAC/100-430VDC |
| The maximum input CURRENT | ≤0.75A |
| Input inrush current | ≤50A |
| Input low start | ≤200mS |
| Long-term reliablity | MTBF≥100000H |
| External fuse recommended | 3.15A/300Vac, Slow blow |
Output Features (5V/6000mA)
| No-load rated output voltage | 5±0.2Vdc |
| Full-load rated output voltage | 5±0.2Vdc |
| Short term maximum output current | ≥6200mA |
| Rated output current | 6000mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output Features (9V/3330mA)
| No-load rated output voltage | 9±0.2Vdc |
| Full-load rated output voltage | 9±0.2Vdc |
| Short term maximum output current | ≥3330mA |
| Rated output current | 3530mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output Features (12V/2500mA)
| No-load rated output voltage | 12±0.2Vdc |
| Full-load rated output voltage | 12±0.2Vdc |
| Short term maximum output current | ≥2700mA |
| Rated output current | 2500mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output Features (15V/2000mA)
| No-load rated output voltage | 15±0.2Vdc |
| Full-load rated output voltage | 15±0.2Vdc |
| Short term maximum output current | ≥2200mA |
| Rated output current | 2000mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output Features (18V/1670mA)
| No-load rated output voltage | 18±0.2Vdc |
| Full-load rated output voltage | 18±0.2Vdc |
| Short term maximum output current | ≥1870mA |
| Rated output current | 1670mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output Features (24V/1250mA)
| No-load rated output voltage | 24±0.2Vdc |
| Full-load rated output voltage | 24±0.2Vdc |
| Short term maximum output current | ≥1450mA |
| Rated output current | 1250mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
Output Features (48V/625mA)
| No-load rated output voltage | 48±0.2Vdc |
| Full-load rated output voltage | 48±0.2Vdc |
| Short term maximum output current | ≥825mA |
| Rated output current | 625mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±1% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
