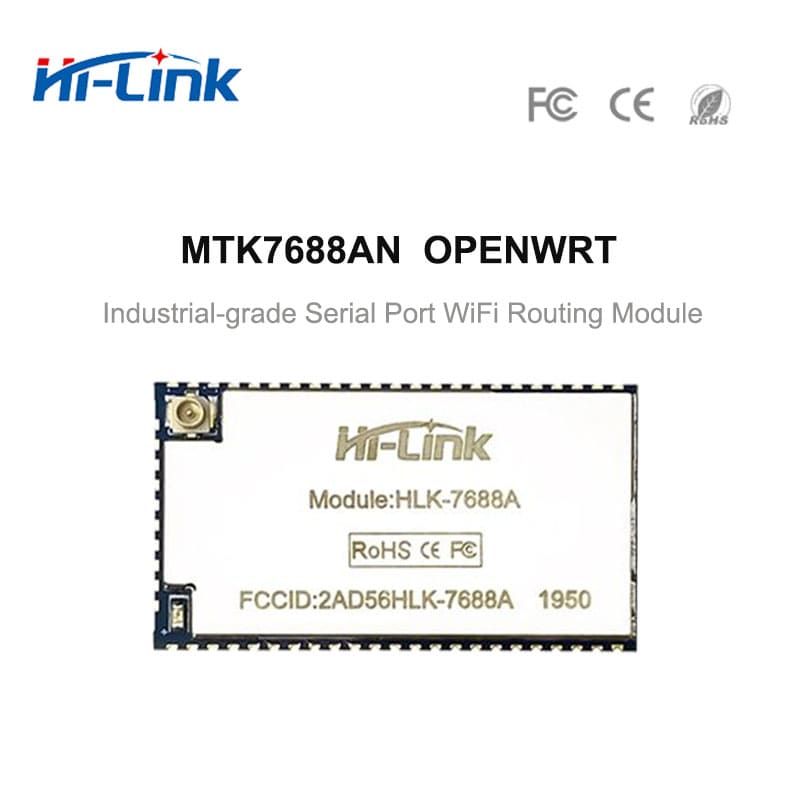

MT7688AN Openwrt Wireless Ethernet WIFI Router WIFI Module HLK-7688A

  • Visitor
    7428
  • Buycount:
  • Price
    $8.30

7688A various verson table (1)

Download Files

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU

HLK-RM65: https://drive.google.com/drive/folders/156pIBs0rKDvnFZNoD0uBIjzKKSTZeYaU

HLK-7688A: https://drive.google.com/drive/folders/1fNV08Eu1_OCQUpqZ8By9CD68w4Ibh8fZ

HLK-RM60: https://drive.google.com/drive/folders/1WrerOCwMmxqeHFxjGQFIHfmw9LDR2teG

HLK-RM58S: https://drive.google.com/file/d/1tQjHtr3GOKEMJGjtrWmpxgh-OA4UBCMv/view

HLK-RM08S: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-RM08K: https://drive.google.com/file/d/1vnyq0m8AySX9s-Hb3LmcJV_DQZnyrRrD/view

HLK-GD01: https://drive.google.com/drive/folders/1Y-xBwPyz2IDlPkSSQYoxwO6WWQ1s9bRo

HK-7628N: https://drive.google.com/drive/folders/1Z8-RLZVs9jjOHwORsGWpotGak7IFOwQo

HLK-7621: https://drive.google.com/drive/folders/14MdhLn9S1d7RK7_obvcoT2zCo8x5EadU



Introduction

HLK-MT7688A based on MT7688AN is a low cost and low power consumption IOT module developed by Hi-Link.

The module supports Linux, OpenWRT operating system and custom development. It could be widely applied to

smart devices or cloud services application with its rich interface and powerful processors.


Features

  • High data processing ability,MCU frequency 580MHz

  • 150M Mbps

  • Support 802.11b/g/n

  • 20/40 Channel bandwidth

  • Support 802.11v

  • Support AP,STA and AP,STA mixed

  • Five 10/100M ETH PORT

  • 1 USB2.0 Host interface port

  • Interface SPI/SD-XC/eMMC

  • Rich peripheral interfacesSPI,I2C,I2S,PCM,UART,JTAG,GPIO

  • Widely used in IOT

  • Inbuilt powerful PMU

  • Support 16 Multiple BSSID

  • Support multiple security methods WEP64/128, TKIP, AES, WPA, WPA2, WAPI

  • Support QoS,WMM,WMM-PS

  • Support Linux 2.6.36 SDK,OpenWrt 3.10


Diagram

Specifications


ItemParameterNote
Model HLK-7688A Version V1.2
Chip MT7628AN
Kernel MIPS24KEc
Basic frequency580MHz
RAM DDR2 128MB Customizable DDR2  256MB/64M/32MB
Flash 32MB Customizable 16MB/8MB
Temperature Environment temperature-20~55
Humidity

Working10~95%noncondensing

Storage5~95%noncondensing


Size 18mm×32.8mm×2.8mm


Module Pins Definition
