  5. 80G liquid level detection sensor HLK-LD8001H radar module non-contact, low-power, long-distance, high-precision
  • j

80G liquid level detection sensor HLK-LD8001H radar module non-contact, low-power, long-distance, high-precision

  • Visitor
    1418
  • Buycount:
  • Price
    $35.20

LD8001H-2

Download Files:

HLK-LD8001B/H, LD7901: https://drive.google.com/drive/folders/1aiIZDubSBSWa8osZvaEuoZJp1Z7ra97i

HLK-LD6002C: https://drive.google.com/drive/folders/1UFBTpL7mLjvzcOgDNnifWcXyOEQX2Cx5

HLK-LD6002B: https://drive.google.com/drive/folders/1ug-oR3rV8ndN-lEZMgYn8a-KIOFFdn4V

HLK-LD6002: https://drive.google.com/drive/folders/1oMJYYOvhXx9uJD9SCkCsjMzLqdOg7AqR

HLK-LD2461: https://drive.google.com/drive/folders/14_KgZpL4Th2LTRuq_W0X_ePjHu_Z6lcS

HLK-LD2450: https://drive.google.com/drive/folders/1kTt0Z3hjKKrIF3OCIDGdwQ4KotDJ8SGA

HLK-LD2415H: https://drive.google.com/drive/folders/1eOj3xdVOvwmmCniIhfUZZwE_R63wWeKO

HLK-LD2410S: https://drive.google.com/drive/folders/1wC8KC-DaNavNbpeVouZ1HdiBzZ9YrAcg

HLK-LD2410C: https://drive.google.com/drive/folders/1ypOlacBmmFXY6lDQ0f1hEJFmczNe-0WG

HLK-LD2410B: https://drive.google.com/drive/folders/16zI-fium_BZeP08EyQke0rWp0BJTMvw3

HLK-LD2410: https://drive.google.com/drive/folders/1lCQv3mfHJ3XKXzweeHPFnJ_8_D_EWEKk

HLK-LD2411: https://drive.google.com/drive/folders/1ZAFkDPr_BLQpmw1h6furMvg-hcByOt5z

HLK-LD101V: https://drive.google.com/drive/folders/1O8H_NBj3Bm8QCHyXO-5YvEremdVrs-EM



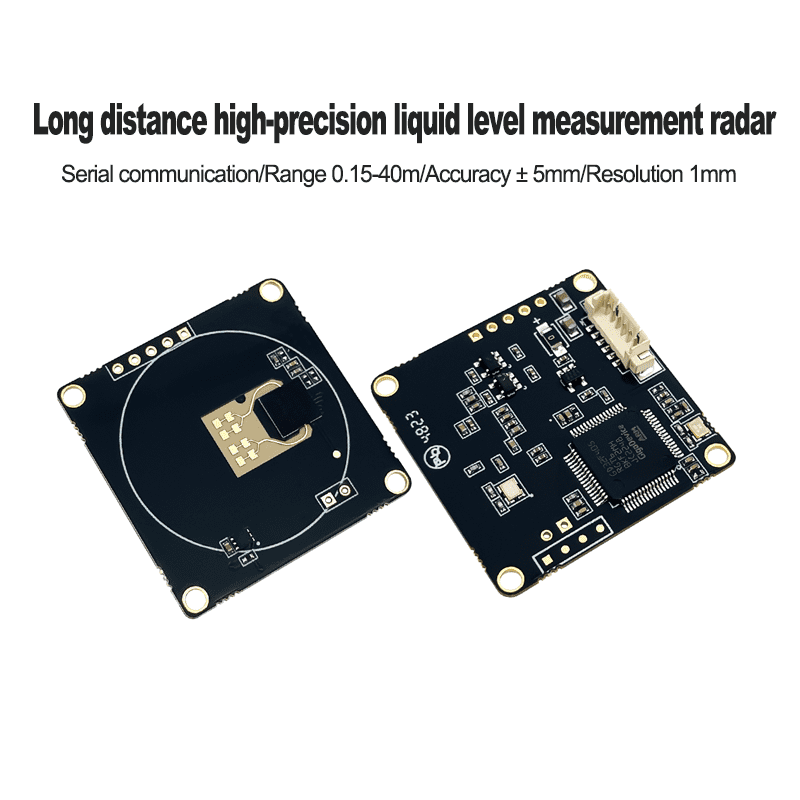

Product introduction

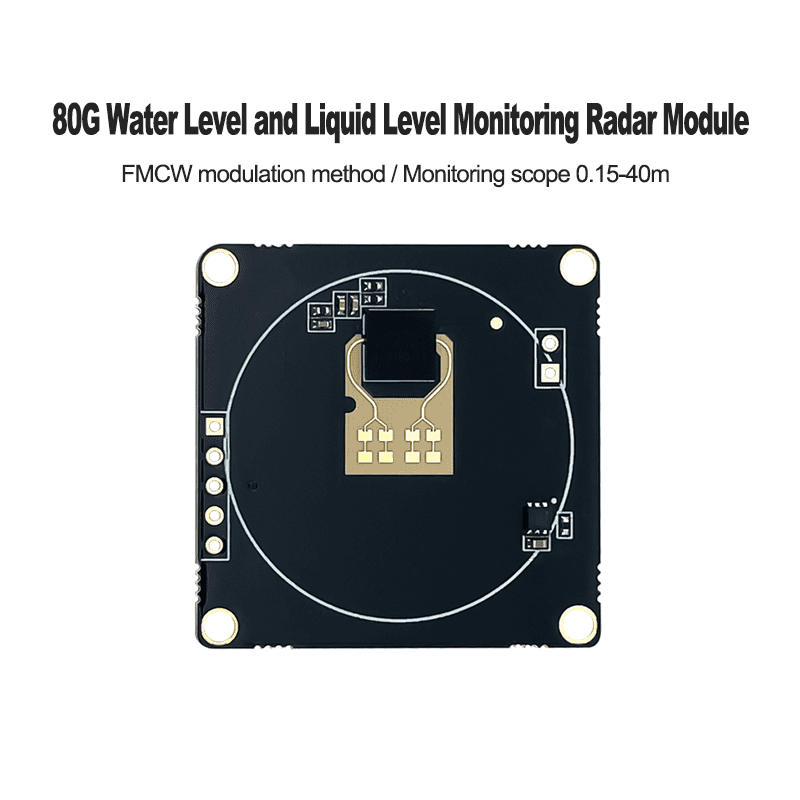

HLK-LD8001H radar sensor is a radar module designed specifically for hydrological detection. This module adopts FMCW mode, non-contact installation design, compact size, and compact structure. High precision, low power consumption, strong anti-interference ability, suitable for water level monitoring in lakes, rivers, mountain flood warning, reservoirs, sewage pipelines, etc

Measurement.


Specifications


① Functional parameters


ParametersSymbolMinTypicalMaxUnit  Illustrate

Transmitter


Transmission frequencyf77
81GHzBroadband 4G

Output Power (EIRP)

Pout
1320dBm
Antenna angle (refer to Figure 4)

Beam width (-3dB)

horizontal direction
±25bpm


vertical direction1±25Min

Beam width (-3dB) external lens antennahorizontal direction 1±3



vertical direction
±3


Power
working voltageVCC3.53.75V
working currentLCC
30
mA

typical

 value

OutputUART output, default baud rate 115200, ASCII/Modbus protocol can be freely switched
Environment
Operational temperatureTOP﹣45
+ 85

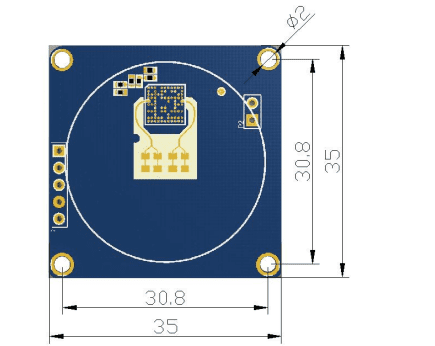

Module size35 x 35 x 1.2 mm
weight5 g
Measurement indicators
Ranging range0.15~40m
measurement accuracy±5mm
resolution ratio1mm
Start TimeFastest 100ms

Explanation:

The working frequency band of the radar is 80GHz, and the maximum measurement range is 40 meters. Depending on the size of the object's RCS, the maximum detection distance will be there is a deviation.



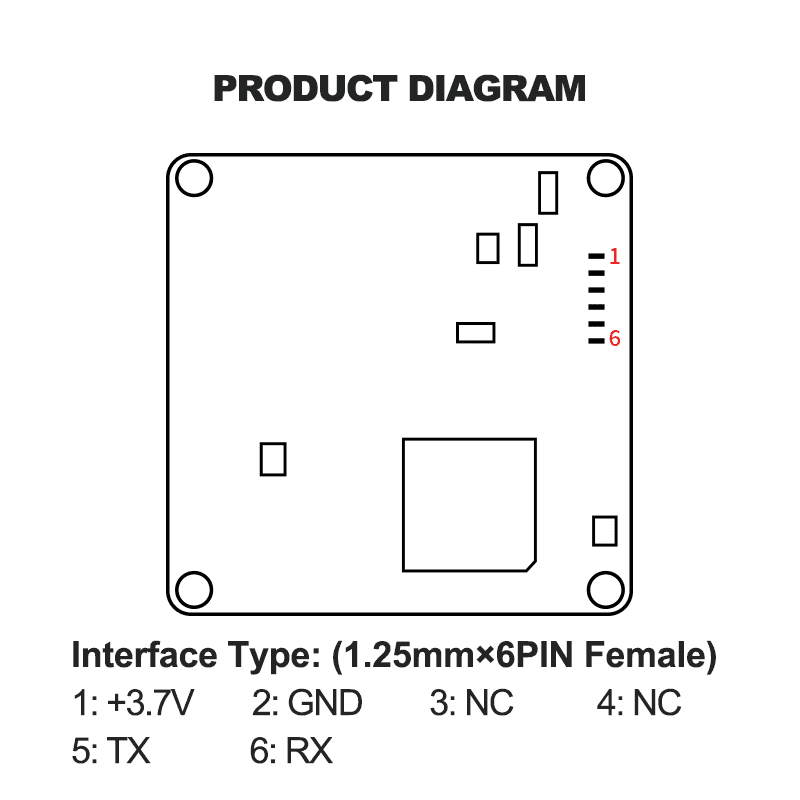

Hardware description



                                       LD8001-SIZE (1)






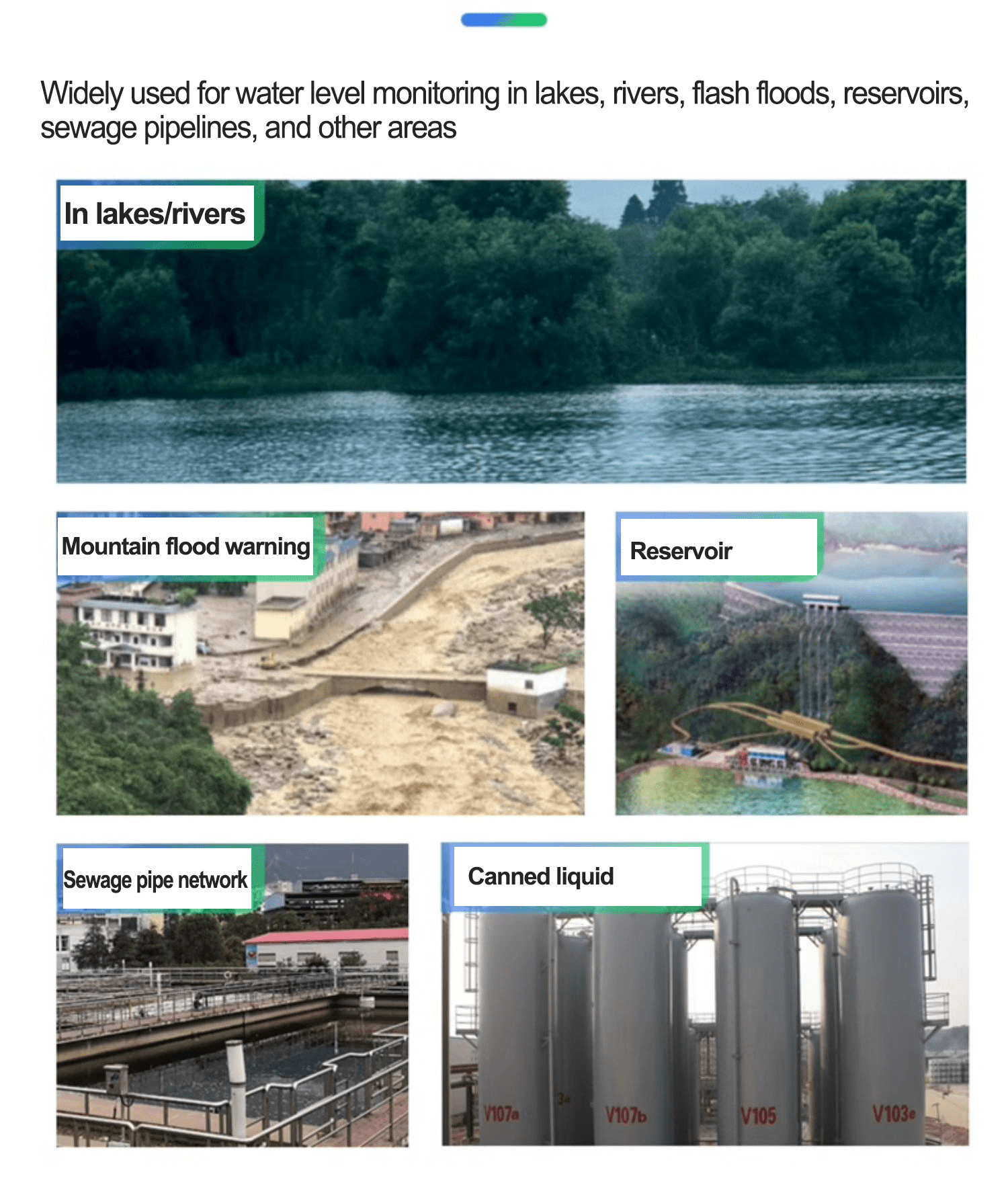

Application



详情-application
