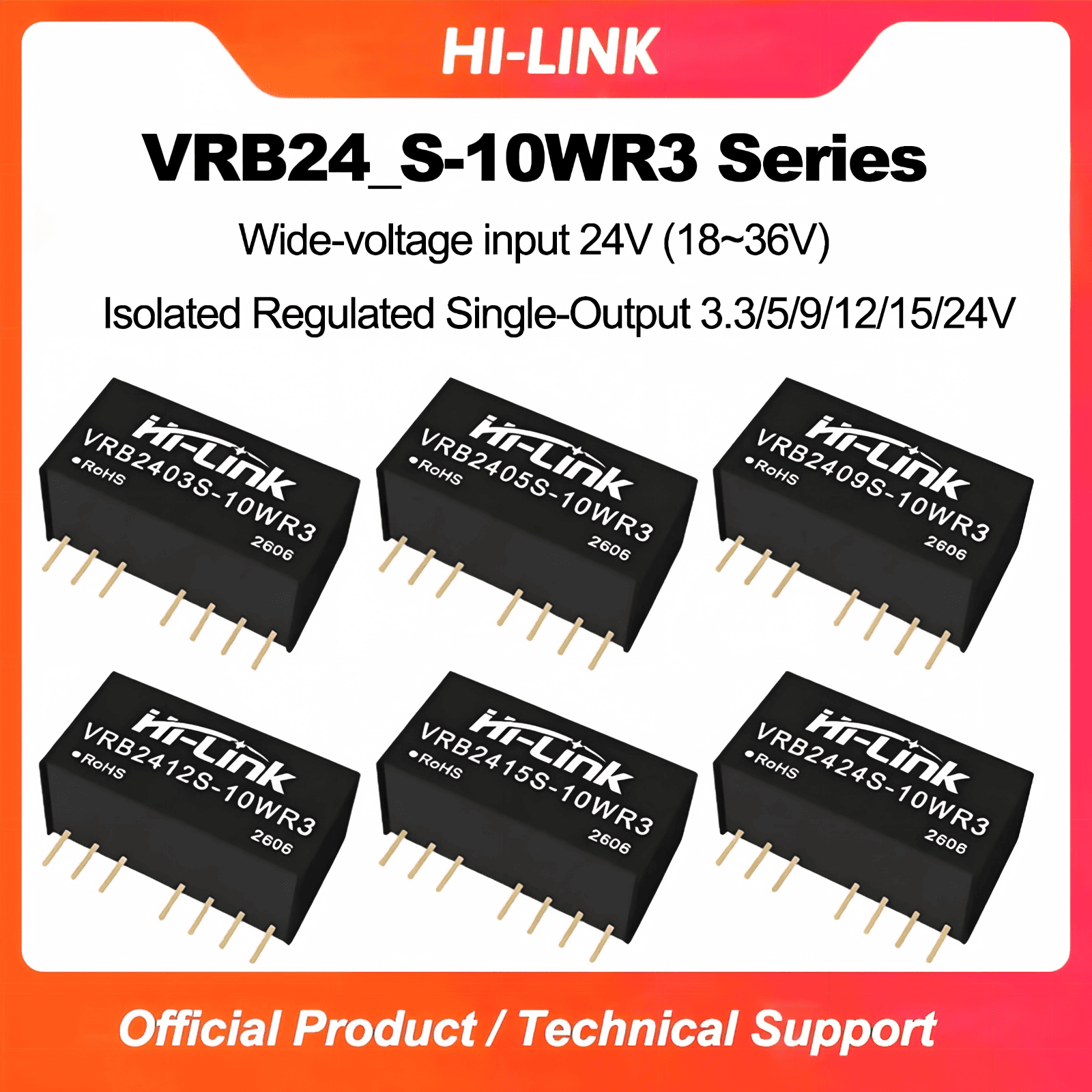

24V DC power module VRB2405/VRB240503/VRB240512/VRB2415/VRB2424S-10WR3 DC-DC isolated and regulated output
-
Visitor22
-
Buycount：
-
Price$2.95
Download files:
DC to DC power module:
1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV
2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB
3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN
5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?
6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw
10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC
12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g
20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6
30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP
40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm
B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view

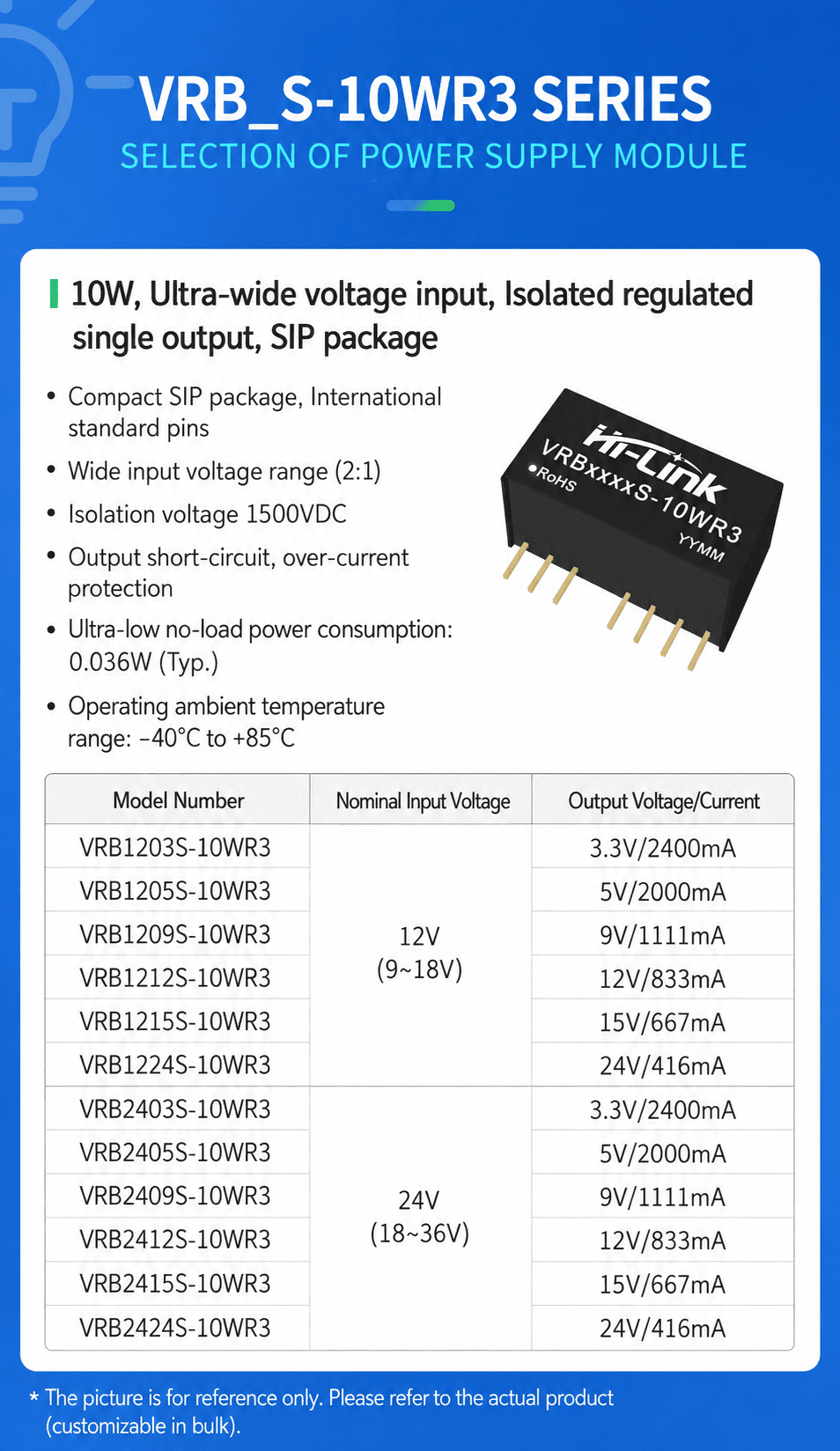

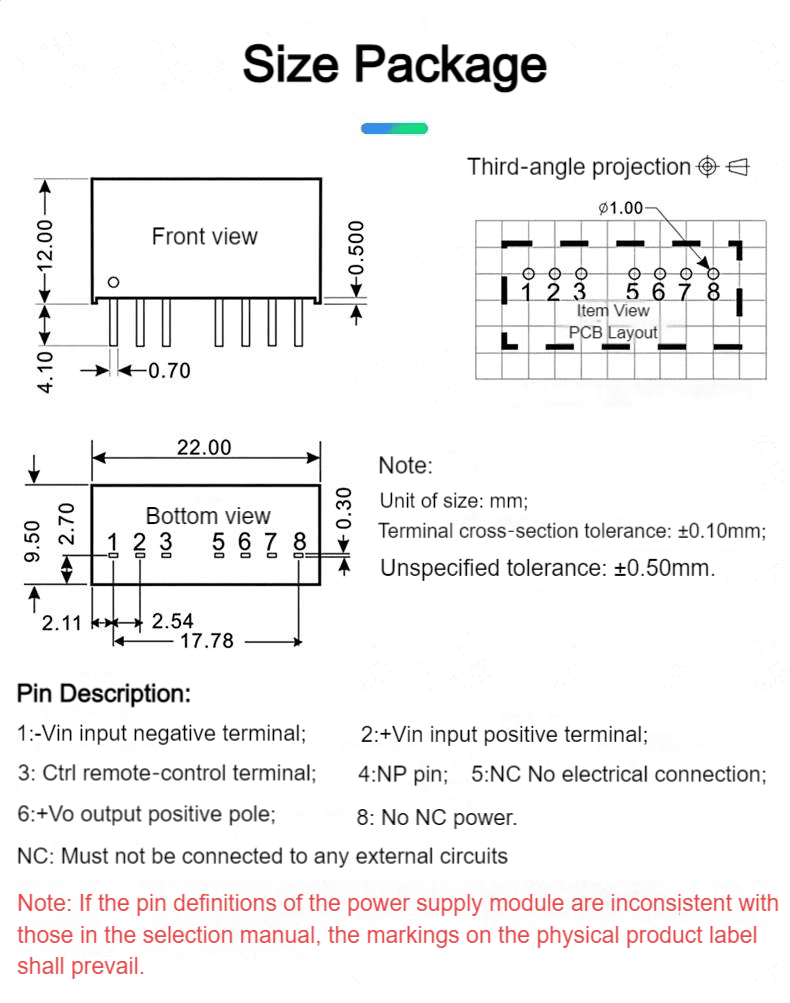

Product Feature
Ultra wide range input (2:1), output 10W
Conversion efficiency 88% (Typ)
Isolation voltage 1500Vdc
Ultra low standby power consumption: 0.036W (typical value)

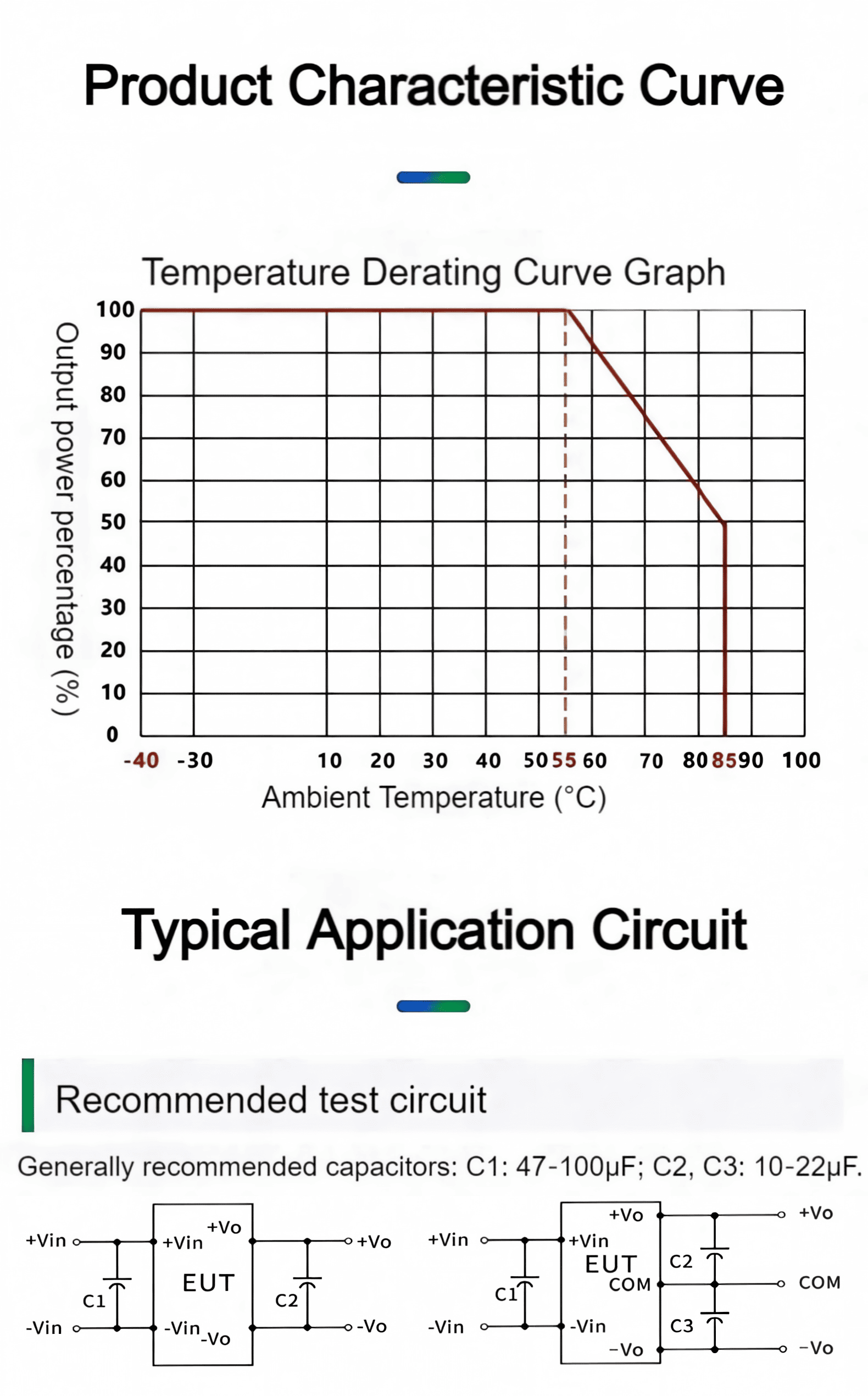

Working temperature range: -40 ° C~+85 ° C
Input undervoltage, output short circuit, overcurrent protection
Input Characteristics
| Item | Working conditions | Min. | Typ. | Max. | Unit | |
| Input current(full load/ no load) | 12VDC nominal input series, nominal input voltage | 3.3V | - | 759/35 | 815/50 | mA |
| 5V | 969/35 | 992/12 | ||||
| other | 969/9 | 992/18 | ||||
| 24VDC nominal input series, nominal input voltage | 3.3V | - | 389/25 | 398/45 | ||
| 5V | 474/25 | 485/45 | ||||
| other | 474/9 | 485/18 | ||||
| reflected ripple current | 12VDC nominal input series, nominal input voltage | - | 40 | - | ||
| 24VDC nominal input series, nominal input voltage | - | 30 | - | |||
| Impulse voltage (Isec. max) | 12VDC nominal input series, nominal input voltage | -0.7 | - | 25 | VDC | |
| 24VDC nominal input series, nominal input voltage | -0.7 | - | 50 | |||
| Start voltage | 12VDC nominal input series, nominal input voltage | - | - | 9 | ||
| 24VDC nominal input series, nominal input voltage | - | - | 18 | |||
| Input undervoltage protection | 12VDC nominal input series, nominal input voltage | 5.5 | 6.5 | - | ||
| 24VDC nominal input series, nominal input voltage | 12 | 15.5 | - | |||
| Start time | Nominal input voltage and constant resistance load | - | 5 | - | ms | |

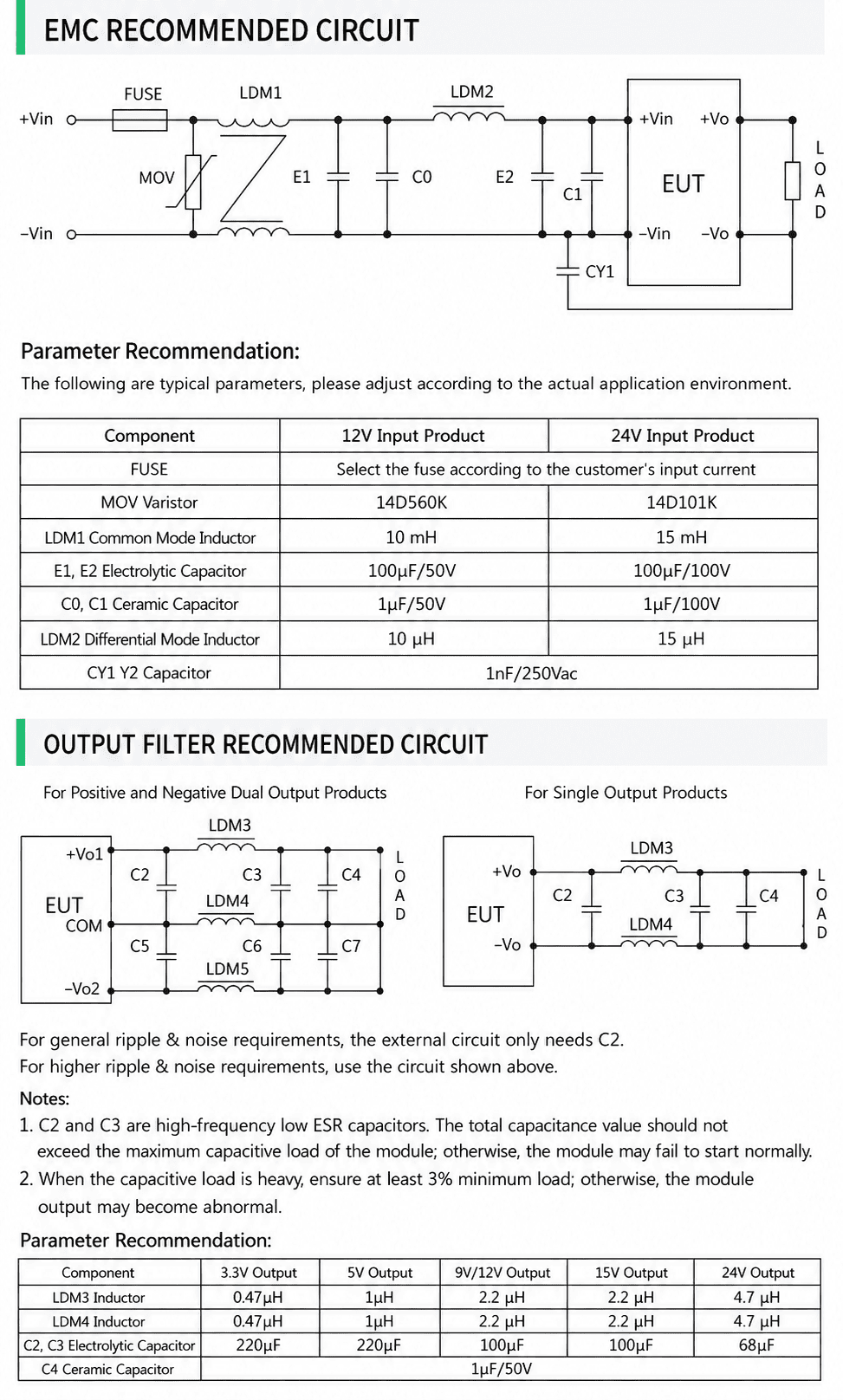

| Input filter type | PI type | - | ||||
| hot-swapping | Not support | - | ||||

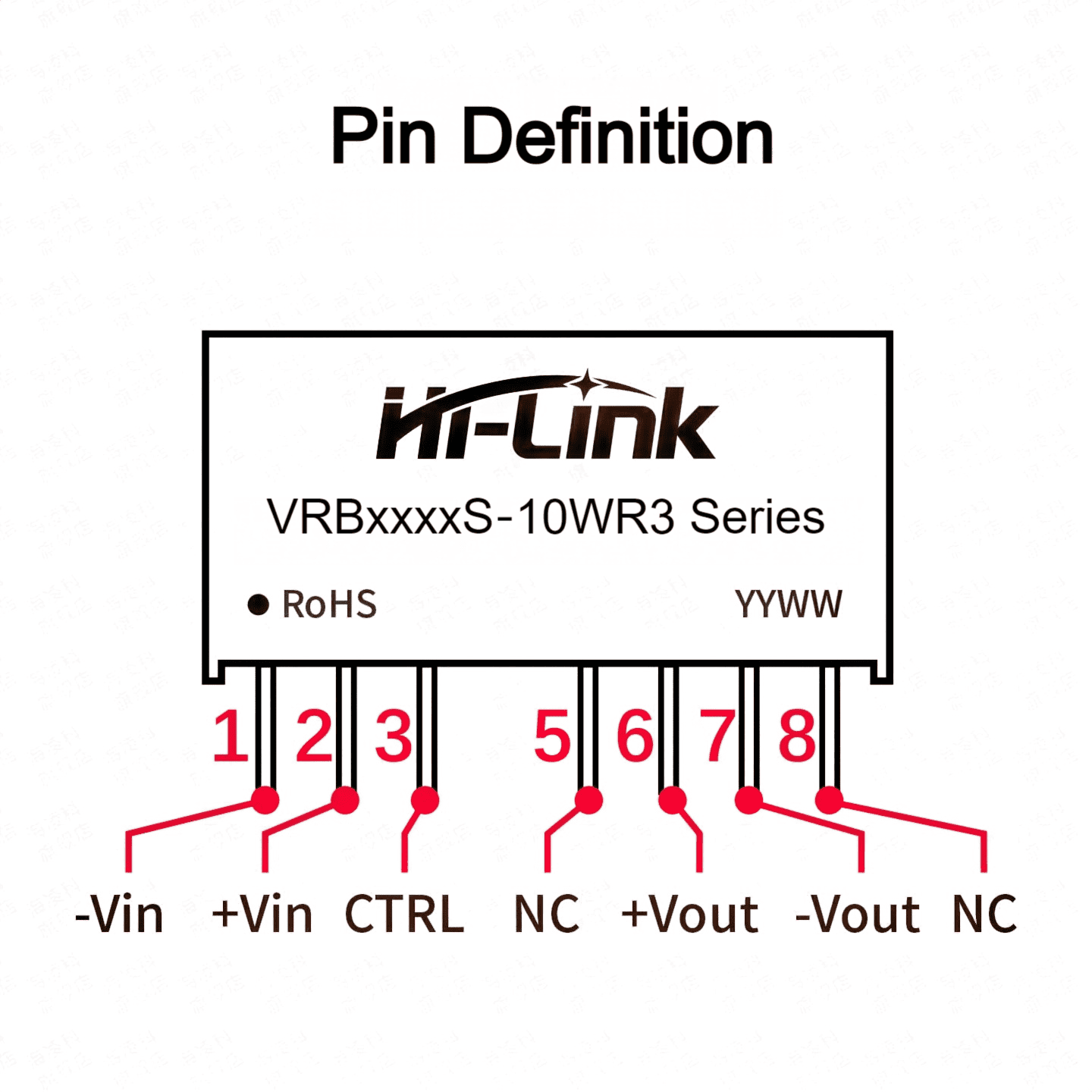

| Contril (Ctrl)* | module start | Ctrl floating or connected to TTL high level (3.5-12VDC) | ||||
| module shutdown terminal | Ctrl connected to GND or low level (0-1.2VDC) | |||||
| Input current when turned off | - | 6 | 10 | |||
| Note: The voltage of the Ctrl control pin is relative to the input pin GND | ||||||
Output Characteristics
| Item | Working and testing condition | +V01 | -V02 | |||||
| Min. | Typ. | Max. | Min. | Typ. | Max. | |||
| Output load | load percentage | 0% | - | 100% | 0% | - | 100% | |
| Output Voltage Accuracy | - | ±1.0% | ±2.0% | - | ±2.0% | ±3.0% | ||
| Linear adjustment rate | input voltage range | - | ±2.0% | ±0.5% | - | ±1.5% | ±2.0% | |
| Load adjustment rate | 20%~100% rate load, balanced | -- | ±0.5% | ±1.0% | - | ±4.0% | ±5.0% | |
| Ripple & Noise | Pure resistive load, 20HMz bandwidth, peak-to-peak | -- | 80mVp-p | 150mVp-p | - | 80mVp-p | 150mVp-p | |
| Output voltage regulation | Input voltage range | - | No adjustment end | - | - | No adjustment endNo adjustment end | - | |
| Dynamic response step deviation | 25% nominal load step | - | ±3.0% | ±5.0% | - | ±3.0% | ±5.0% | |
| Dynamic response recovery time | - | 300us | 500us | - | 300us | 500us | ||
| Output overcurrent protection | Full voltage range input | 110%lo | 150%lo | 200%lo | ||||
| Output short circuit protection | Full voltage range input | Sustainable, self-healing | ||||||

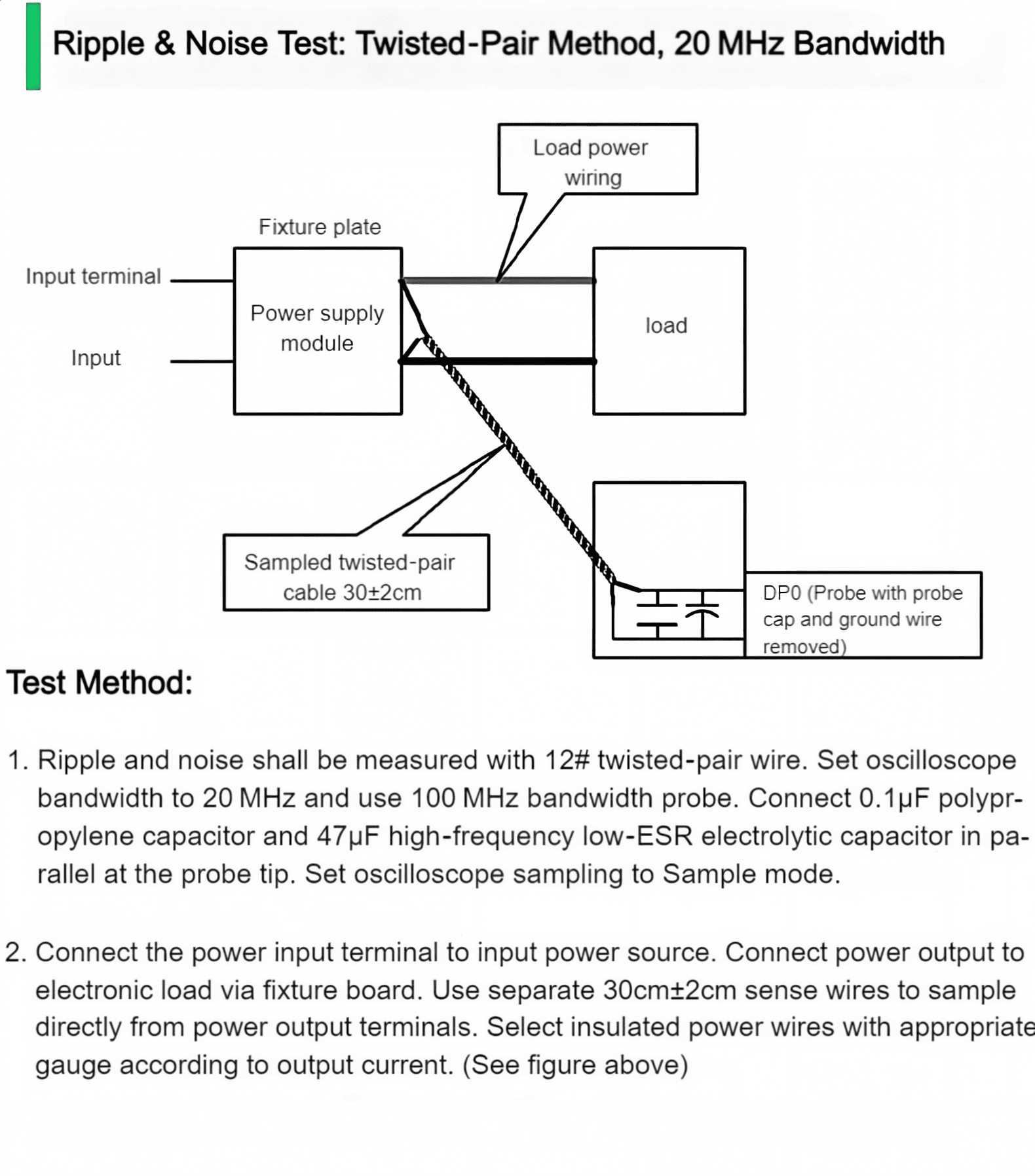

Note: When tested under 0% -100% load conditions, the indicator of load adjustment rate is ± 5%; 20% -5% load ripple&noise less than or equal to 5% Vo. Ripple The testing method for noise is the twisted pair testing method, which can add a capacitive load at the output end to reduce light load ripple. | ||||||||
