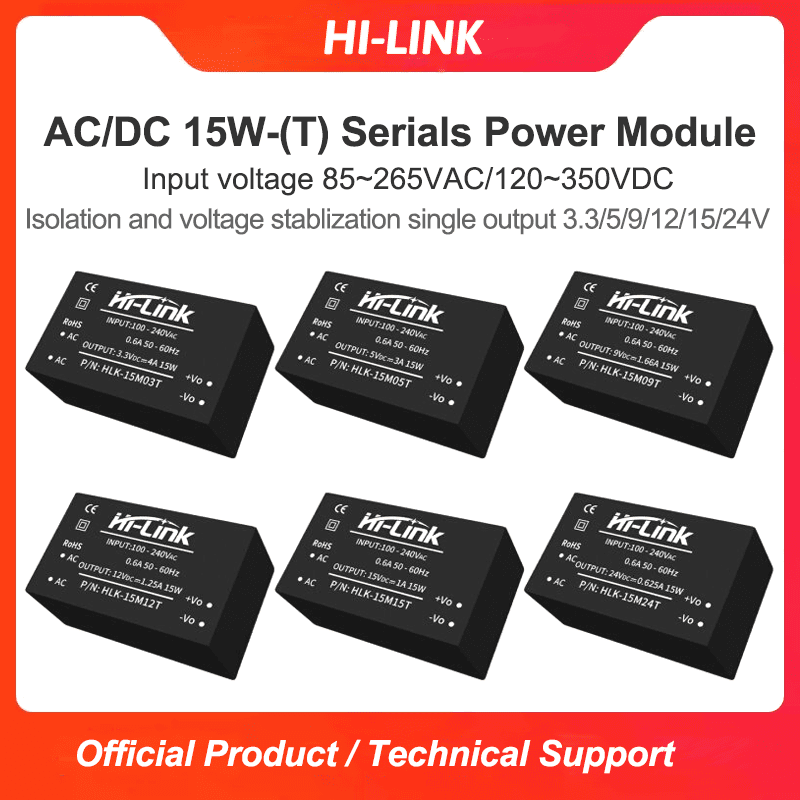

Ultra small size AC-DC isolation switch power module 15M12T/15M05T/15M15T 220V to 5V9V15V24V voltage regulator module
-
Visitor89
-
Buycount：
-
Price$2.45
AC to DC power module:
40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7
30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb
20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z
15W(C): https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti
10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk
5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g
3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP
2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view
Product Introduction
15W is a small-sized, high-efficiency, and ultra small series module power supply designed by Shenzhen Hi-link Electronics for customers. It adopts the most advanced gallium nitride chip solution and has the advantages of global input voltage range, low temperature rise, low power consumption, high efficiency, high reliability, and high safety isolation. It is widely used in industries such as smart homes, automation control, communication equipment, and instrumentation.
Product Features
Ultra thin, compact, and the smallest volume in the industry
Global universal input voltage (100~240Vac)
Low power consumption, green environmental protection, no-load loss<0.1W
Low ripple, low noise
Good output short circuit and overcurrent protection with self recovery capability
High efficiency and high power density
Input/output isolation withstand voltage 3000Vac
100% full load aging and testing
High reliability, long-life design, continuous working time greater than 100000 hours
Meet UL and CE safety requirements;
Using high-quality environmentally friendly waterproof thermal conductive adhesive for sealing, moisture-proof and vibration proof, meeting the IP65 standard for waterproof and dustproof
Economic solutions with high cost-effectiveness
Can work without external circuitry
1-year quality warranty period
Environment Condition
| Working Temerature | -25—+60 ℃ |
| Storage temperature | -40—+80 ℃ |
| Relative humidity | 5—95 % |
| Thermal methods | Natural cooling |
| Atmospheric pressure | 80—106 Kpa |
| Altitude | ≤2000 m |
| Vibration coefficient | 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes. Meets secondary road transportation requirements |
Input Features( test at room temperature)
| Rated input voltage | 100-240Vac |
| Input vlotage range | 85-265VAC/120-350VDC |
| The maximum input CURRENT | ≤0.4A |
| Input inrush current | ≤40A |
| Input low start | ≤50mS |
| Long-term reliablity | MTBF≥100000H |
| External fuse recommended | 1A/250Vac, Slow blow |
Output Features（5V/3000mA)
| No-load rated output voltage | 5.0±0.3Vdc |
| Full-load rated output voltage | 5.0±0.3Vdc |
| Short term maximum output current | ≥3000mA |
| Rated output current | 4000mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
| Output over-current protection Output maximum load | 130-180% A |
| Ripple/Noise | ≤100mVp-p(Typ:50) |
Output Features（12V/1250mA)
| No-load rated output voltage | 12.0±0.3Vdc |
| Full-load rated output voltage | 12.0±0.4Vdc |
| Short term maximum output current | ≥2000mA |
| Rated output current | 1250mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
| Output over-current protection Output maximum load | 130-180% A |
| Ripple/Noise | ≤100mVp-p(Typ:50) |
Output Features（15V/1000mA)
| No-load rated output voltage | 15.0±0.3Vdc |
| Full-load rated output voltage | 15.0±0.4Vdc |
| Short term maximum output current | ≥1200mA |
| Rated output current | 1000mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
| Output over-current protection Output maximum load | 130-180% A |
| Ripple/Noise | ≤100mVp-p(Typ:50) |
Output Features（24V/625mA)
| No-load rated output voltage | 24.0±0.3Vdc |
| Full-load rated output voltage | 24.0±0.4Vdc |
| Short term maximum output current | ≥800mA |
| Rated output current | 625mA |
| Voltage regulation rate | ±0.2% |
| Load regulation rate | ±0.5% |
| Switching on/off overshoot amplitude | （Rated input voltage, output with 10% load) ≤5%VO |
| Output over-current protection Output maximum load | 110-180% A |
| Ripple/Noise | ≤100mVp-p(Typ:50) |
Input Voltage & Load Characteristics
Working Environment Temperature & Load Characteristics

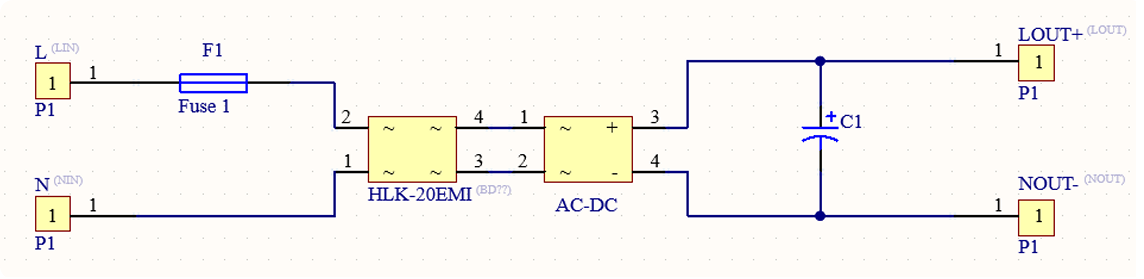

Typical Application Circuit
Input Parameter Recommendation
| Recommended Component | Function | Recommended Parameters |
| F1/fuse | When the module is abnormal, protect the circuit from damage | 2A/250Vac, slow fuse |
| HLK-20EMI | EMC attenuator |  |
| Notes: Fuses are the basic protection circuit and must be connected | ||
Output Parameter Recommendation
| Recommended Component | Function | Recommended Parameters |
| C1/filter capacitor | After filtering and adding this capacitor, users can adjust the output ripple voltage | Aluminum electrolytic capacitor, capacity 100-220uF, resistant to Pressure drop greater than 75% |
Safety Characteristics
Meet UL/CE requirements
(UL/CE certification requires customers to self-certify)
Safe compatible with battery
The input end design adopts UL certification 1A insurance
The fire ration of PCB board is 94-V0
Safety standards comply with UL1012,EN60950,UL60950
Insulation voltage I/P-O/P＞2500Vac
Insulation resistance I/P-O/P＞100M 0hms/500Vdc 25℃ 70%RH
Conforms to radiation EN55011, EN55022(CISPR22)
Electrostatic discharge IEC/EN 61000-4--2 level4 8KV/15KV
Temperature rise safety design
Under normal conditons, the maximum temperature rise of the inner surface of the power supply capacitor,
main converter, etc. does not exceed 90℃，and the maximum temperature rise of the shell surface does not exceed 60℃
