  5. URA2405YMD-5WR3 power module URA2403/09/12/15/24YMD-5W stabilized dual output
  • j

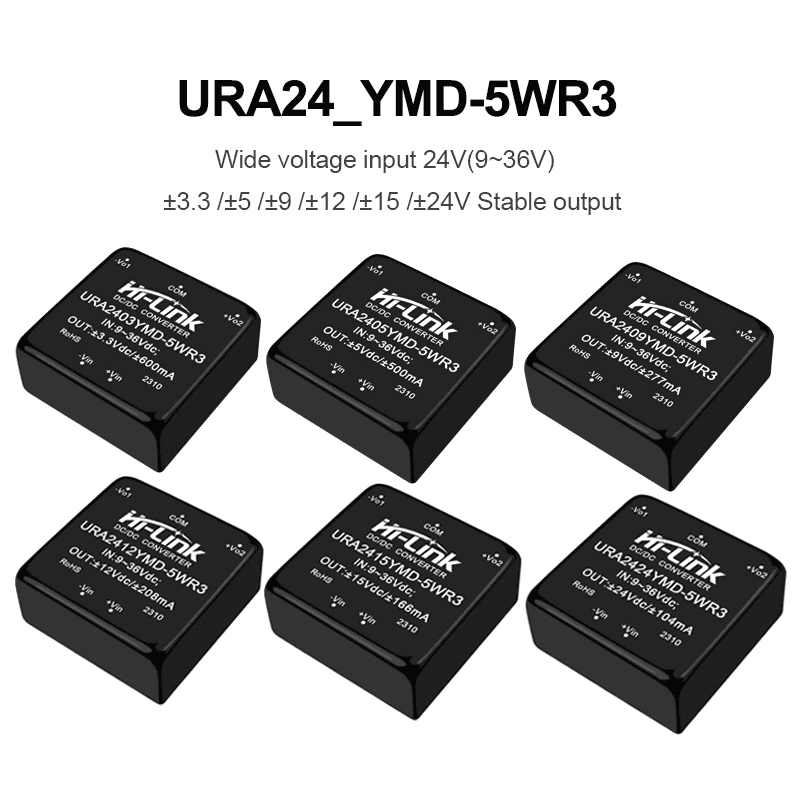

URA2405YMD-5WR3 power module URA2403/09/12/15/24YMD-5W stabilized dual output

  • Visitor
    1634
  • Buycount:
  • Price
    $3.48

URA-YMD-5W Series Mode list

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15WC: https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view



Product Feature

  • Wide voltage range input (4:1 ),output:5W

  • Conversion efficiency :90% (Typ) )

  • Isolation voltage :1500Vdc

  • Standby power consumption :0.036W (Typ) )

  • Quick start :1mS (Typ) )

  • Operating temperature range :-40~+85°C

  • Input undervoltage, output short circuit, overcurrent, overvoltage protection

  • Metal shell, low output ripple

  • International standard pins, PCB board in-line installation


The output power of UR(A)B_YMD-5WR3 series products is 5W, 4:1 wide voltage input range, efficiency up to 90%, 1500VDC conventional isolation voltage, allowable operating temperature -40℃to+85℃, with output overvoltage, overvoltage Flow and short circuit protection functions, the bare metal meets CISPR32/EN55032 CLASSA, and is widely used in medical, industrial control, electric power, instrumentation, communication, railway and other fields.


EInput Features

Project Working conditions Min. Typ.Max. Unit

Input current

(full load/no load)

24VDC nominal input series, nominal input voltage

3.3V201/1206/2mA

Other245/1251/2

48VDC nominal input series, nominal input voltage

3.3V100/0.5103/1

Other123/0.5126/1

110VDC nominal input series, nominal input voltage

3.3V44/0.345/0.5

Other50/0.3 55/0.5
Reflected ripple current24VDC nominal input series, nominal input voltage-40-mA
48VDC nominal input series, nominal input voltage-30-
110VDC nominal input series, nominal input voltage-20-

Impulse voltage

(Isec.max)

24VDC nominal input series, nominal input voltage-0.7-50VDC
48VDC nominal input series, nominal input voltage-0.7-100
110VDC nominal input series, nominal input voltage-0.7-200
Starting voltage24VDC nominal input series, nominal input voltage--9
48VDC nominal input series, nominal input voltage--18
110VDC nominal input series, nominal input voltage--40

Input undervoltage

protection

24VDC nominal input series, nominal input voltage5.56.5
48VDC nominal input series, nominal input voltage1215.5
110VDC nominal input series, nominal input voltage3236
Startup time Nominal input voltage and constant resistance load
1mS
Input filter type

PI type
Hot plug

Not support
Remote control(Ctrl)* Module on

Ctrl floating or connected to TTL high level

(3.5-12VDC)


Input current at shutdown -01mA
Note: *Ctrl control pin voltage is relative to input pin GND
