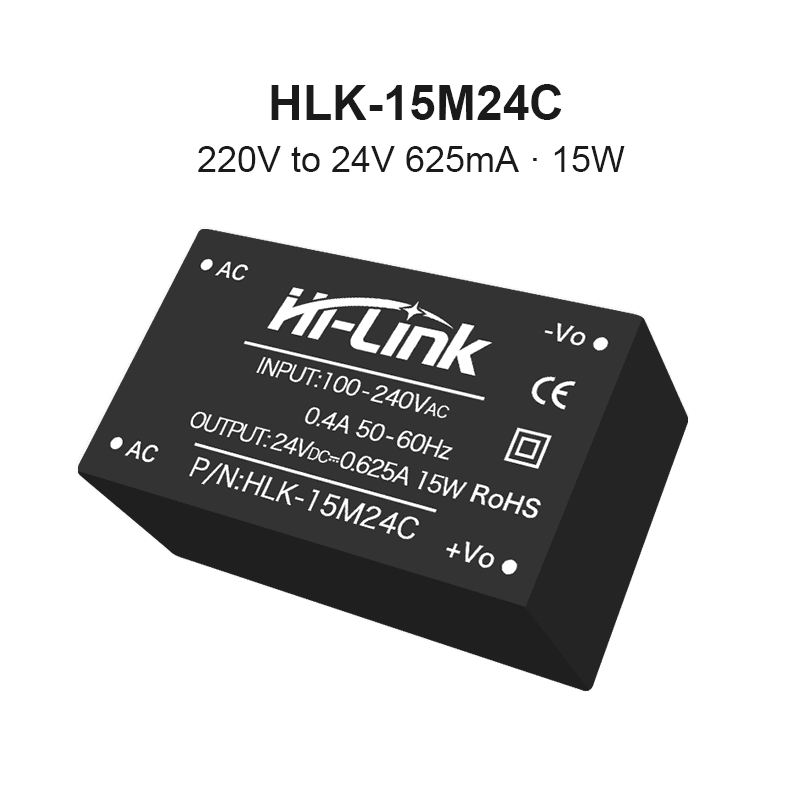

AC-DC HLK-15M24C 15W 220V to 5V9V12V15V24V voltage reduction isolation switch power supply module stabilizing EMC circuit

  • Visitor
    3154
  • Buycount:
  • Price
    $2.58

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

40W: https://drive.google.com/drive/folders/1jI-hITgxjtByhSCpUMmrJATHO8b_gpN7

30W(C): https://drive.google.com/drive/folders/1Nz-_SdQAuVha0JM7nJTelIfophZsmUYb

20W: https://drive.google.com/drive/folders/1PlLOzt_k3Ky5THYGOWP72jqxWSkJsU6Z

15WC: https://drive.google.com/drive/folders/1vnVfcgQH-OvujpO6asvQvjIgmwUS2Pti

10W: https://drive.google.com/drive/folders/1zaMfq4Dm3brmRWhTGp9-49c8hN5HsIuk

5W: https://drive.google.com/drive/folders/1_dzDfHi9HOnj_b0RJHCGZ9j87ma8PU7g

3W: https://drive.google.com/drive/folders/1xz8MPw9KeQXDlyAQoI3KXzjCoL4yBRVP

2W: https://drive.google.com/file/d/1_UaUPWX9K5Bfavle4C1imVY0-WjY4yso/view



1. Ultra-small Series Power Module


The 15W ultra-small series module power supply is a small-volume, high-efficiency AC DC power module

supply designed by Shenzhen Hi-Link Electronics Co.,Ltd. It has the advantages of global input voltage range, low

temperature rise, low power consumption,high efficiency, high reliability and high safety isolation. It has been

widely used in smart home, automation control, communications equipment, instrumentation and other industries.


2. Product Model


ModelSize(mm)Output Power(W)Output Voltage(V)Output Current(mA)Notes
HLK-15M05C



       47.5*28.5*22

1553000
HLK-15M09C1591660
HLK-15M12C15121250
HLK-15M15C15151000
HLK-15M24C1524625


3. Product Features


1. Ultra-thin, ultra-small, smallest volume;

2. Global universal input voltage (85~265Vac)

3. Low power consumption, green environmental protection, no-load loss<0.1W

4. Low ripple, low noise

5. High output short circuit and over-current protection and self recovery

6. High efficiency, high power density

7. Input and output isolation voltage 3000Vac

8. 100% full load aging and testing

9. High reliability, long life design, continuous working time is greater than 100,000 hours;

10. Meet UL, CE requirements; product design to meet EMC and safety testing requirement;

11. Using high-quality environmentally friendly waterproof plastic potting, moisture, vibration, water and dust to meet IP65 standards

12. Economic solutions, cost-effective

13. Work without external circuit

14. 1 year quality guarantee period


5. Electrical characteristics

5.1. Input Features


Items
Technical ParametersUnitsNotes
Rated Input Voltage100-240 Vac
Input voltage range85-265 VacOr 120-350Vdc

The maximum input current

≤0.4 A
Input inrush current≤34 A
Input low start ≤50 mS
Long-term reliabilityMTBF≥100, 000 h

External fuse recommended

1A/250Vac
Slow blow

Note: Tested at room temperature
