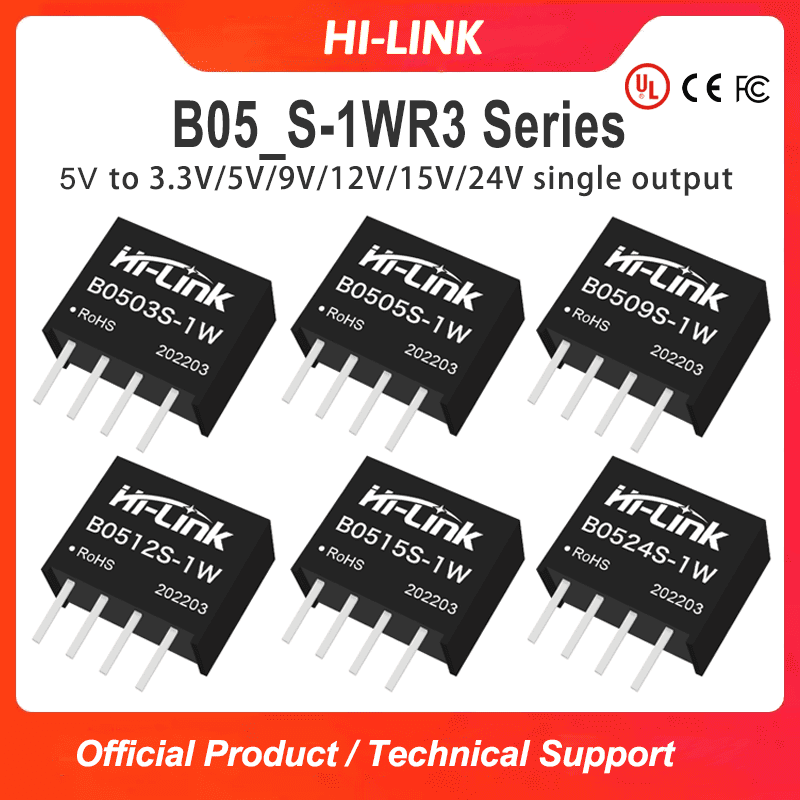

Welcome to Contact Us for Free Sample B0503S/B0509S/0512S/0515S/0524S-1WR3 5V to 3.3V/9V/12V/15V/24V 1W Module

  • Visitor
    3516
  • Buycount:
  • Price
    $0.45

B05XX Series Mode list

Download files:

DC to DC power module:

1W: https://drive.google.com/drive/folders/1vk6luTBKSC5gfwLJC-DbyEZYVDwk87JV

2W: https://drive.google.com/drive/folders/1vjf-77LCVQl16Hcb1phADiU3Hz14mhYB

3W: https://drive.google.com/drive/folders/13pTx02uL4moskJ-PQsBYFytdq2pPt2mN

5W: https://drive.google.com/drive/folders/1okF0YdP1Xs35HxnAkTm45WOK0kH7qlb5?

6W: https://drive.google.com/drive/folders/18IOw7PyIx99lbm3u0FEhkepC82w601sw

10W: https://drive.google.com/drive/folders/1vuJp5ZoJA9Ci0M4wCS8nT689LVzgh2tC

12W: https://drive.google.com/drive/folders/1becUdxQODQ25_A_iarNnun3Vmi_wow1g

20W: https://drive.google.com/drive/folders/182aHyvoN8J0fCurg65jOkfQp17dyaXP6

30W: https://drive.google.com/drive/folders/1StP-0SJDyFpH3yQMLLQjkQXMDXc-RGeP

40W: https://drive.google.com/drive/folders/1IXRm7dueYYTNoyXCFp88wRQexmKAgCLm

B0505S-1WR2: https://drive.google.com/file/d/16BPrOWkzOz7efnf3OvF1XjClKGnO6znv/view

AC to DC power module:

https://drive.google.com/drive/folders/1HcZhdzhKA4p08B_YEv_A6sUOvNJ0Ei9n?usp=sharing



Product Feature

1. characteristic:Constant voltage input, isolated non stabilized voltage single output,1W

2. transfer efficiency 88%(Typ)

3. Isolation is required between input and output(isolation voltage≤1500VDC)

4. output short-circuit protection

5. The voltage of the input power supply is relatively stable.(Voltage variation range±10%Vin)

6. operating temperature range :-40°C~+85°C

7. The stability of output voltage is not required.

8. Small SIP package

9. International standard pin,direct installation of PCB board.

10. Adopts high quality environmental protection, waterproof and heat conducting adhesive for filling and sealing, moisture-proof and vibration proof, meeting the waterproof and dustproof IP65 standard

11. High reliability and long life design,continuous working time MTBF≥3.5 million hours (3500000Hrs)


Enviroment Condition

Project nameQualificationUnitNotes
Working enviroment temperature-40—+85
Storage temperture-40—+80 ℃
Relative humidity5—95%
Heat dissipation modenatural cooling

Atmospheric pressure80—106 KpaKpa
VibrateVibration coefficient 10~500Hz,2G10min./1cycle, 60min.each along X,Y,Z axes
Meet the requirements of secondary road transportation


Input Characteristics

Project nameWorking conditionsUnitNotes
Related input voltage5Vdc
Input voltage range4.5-5.5Vdc
Maximum input current≤0.3A
Reflection ripple current15mA

DC5V rated input voltage series

Impulse voltage≤9Vdc
Starting voltage4.5Vdc
Input undervoltage protection---Vdc
Start-up delay---msRated input voltage and costant resistance load
Input filter type
Capacitance filter type
Hot plugged
Non-support



Output Characteristics(12v/84mA)

Project nameTechnical requirementUnitNotes
No load rated output voltage12V±15%Vdc
Short-time maximum output current≥84mA
Rated output current84mA
Voltage regulation±1.5%
Load regulation ±6%
Transfer efficiency Vin=12Vdc, output full load 88%
Output grain sweep noise(mVp-p)Pure resistance load, 20MHz bandwidth, peak to peak valuemV
Output over-voltage protection
Outputting the maximum voltage 110-160%Vdc
Insulation voltageInput- output, test in 1 minute, leakage current less than 1mA/1500V-
Insulation resisitanceInput- output, insulation volaltge 500VDC/1000MΩ
Isolation capacitanceInput- output, 100KHz/0.1V 20pF-


Note:

1、The above is only a list of typical products. If you need products beyond the list, please contact our sales. 2、The maximum capacitive load indicates the maximum capacitive load that + VO or - vo can be connected to,If the value is exceeded, the product will not start normally..


Typical Application Circuits


EMC parameter recommendation


Component No.FunctionRecommended value
 Cin CapacitanceFilter capacitor4.7μA/50V
Cout CapacitanceFilter capacitor2.2-10μA/50V
Lin inductanceFilter inductanceInductance: 4.7uH
Lout inductanceCin CapacitanceInductance: 4.7uH

Notes:Output Load Requirements

In order to ensure that the module can work efficiently and reliably, the minimum output load should not be less than 10% of the rated load.If the power you need is really small, please connect a resistor in parallel between the positive and negative poles of the output terminal (the sum of the actual power used by the resistor is greater than or equal to 10% of the rated power and the rated power of the selected resistor must be greater than 5 times of the actual power used, otherwise the temperature of the resistor will be higher)
