60G Millimeter Wave Respiratory and Heartbeat Detection Radar Module HLK-LD6002 Non-contact Intelligent Monitoring with 2T2R
-
Visitor8094
-
Buycount：
-
Price$12.50
Download Files:
HLK-LD8001B/H, LD7901: https://drive.google.com/drive/folders/1aiIZDubSBSWa8osZvaEuoZJp1Z7ra97i
HLK-LD6002C: https://drive.google.com/drive/folders/1UFBTpL7mLjvzcOgDNnifWcXyOEQX2Cx5
HLK-LD6002B: https://drive.google.com/drive/folders/1ug-oR3rV8ndN-lEZMgYn8a-KIOFFdn4V
HLK-LD6002: https://drive.google.com/drive/folders/1oMJYYOvhXx9uJD9SCkCsjMzLqdOg7AqR
HLK-LD2461: https://drive.google.com/drive/folders/14_KgZpL4Th2LTRuq_W0X_ePjHu_Z6lcS
HLK-LD2450: https://drive.google.com/drive/folders/1kTt0Z3hjKKrIF3OCIDGdwQ4KotDJ8SGA
HLK-LD2415H: https://drive.google.com/drive/folders/1eOj3xdVOvwmmCniIhfUZZwE_R63wWeKO
HLK-LD2410S: https://drive.google.com/drive/folders/1wC8KC-DaNavNbpeVouZ1HdiBzZ9YrAcg
HLK-LD2410C: https://drive.google.com/drive/folders/1ypOlacBmmFXY6lDQ0f1hEJFmczNe-0WG
HLK-LD2410B: https://drive.google.com/drive/folders/16zI-fium_BZeP08EyQke0rWp0BJTMvw3
HLK-LD2410: https://drive.google.com/drive/folders/1lCQv3mfHJ3XKXzweeHPFnJ_8_D_EWEKk
HLK-LD2411: https://drive.google.com/drive/folders/1ZAFkDPr_BLQpmw1h6furMvg-hcByOt5z
HLK-LD101V: https://drive.google.com/drive/folders/1O8H_NBj3Bm8QCHyXO-5YvEremdVrs-EM
Product introduction
HLK-LD6002 is a radar sensor module developed based on ADT6101P chip, single chip integrated 57~64GHz radio frequency transceiver system, 2T2R PCB microstrip antenna, 1MB flash, radar signal processing unit, ARM ® Cortex® -M3 kernel. This module is based on the FMCW radar mechanism, to detect the surface reflection radar echo of the human body, combined with the radar signal processing algorithm, to realize the single real-time respiratory heart rate frequency measurement.
Product characteristics
Radar detection based on FMCW signal
No contact perception of human Breathing and heart rate
The maximum detection distance of human Breathing heart rate is 1.5m
Universal UART interface, to provide the communication protocol
Reserve multiple groups of IO ports and multiple communication interfaces to support customer
secondary development, suitable for multiple scenarios
Small size, only 25*31.5mm, support needle row connection
Not affected by temperature, humidity, noise, airflow, dust, light and other environment
Applications
Smart home applications
According to the respiratory heart rate measurement, to achieve home empowerment
Health control
Respiratory heart rate data is monitored in real time
Wisdom health
The elderly breathing heart rate monitoring, abnormal immediately report to the police
Specifications
① Functional parameters
| Parameter | Min | Type | Max | Unit |
Breathing and heartbeat detection distance (chest cavity) | 0.4 | 1.5 | m | |
| Respiratory measurement accuracy | 90 | % | ||
Range of the number of respiratory measurements | 9 | 48 | bpm | |
| Carbeat measurement accuracy | 90 | % | ||
Range of the number of heartbeat measurements | 60 | 150 | bpm | |
| Refresh time | 50 | ms | ||
| Establish detection time | 1 | Min | ||
| Maximum number of tests | 1 |
② Electrical characteristics
| Operational parameter | Min | Type | Max | Unit |
| Operating voltage (VCC) | 3.1 | 3.3 | 3.5 | V |
| Operating current (ICC) | 600 | mA | ||
| Operating temperature (TOP) | -20 | 85 | ℃ | |
| Storage temperature (TST) | -40 | 85 | ℃ |
③ RF characteristics
| Operational parameter | Min | Type | Max | Unit |
| Service frequency | 58 | 62 | GHz | |
| EIRP | 12 | dBm | ||
| Antenna gain | 4 | dBm | ||
| Horizontal beam (-3dB) | -60 | +60 | / | |
| Vertical beam (-3dB) / | -60 | +60 | / |
Hardware description

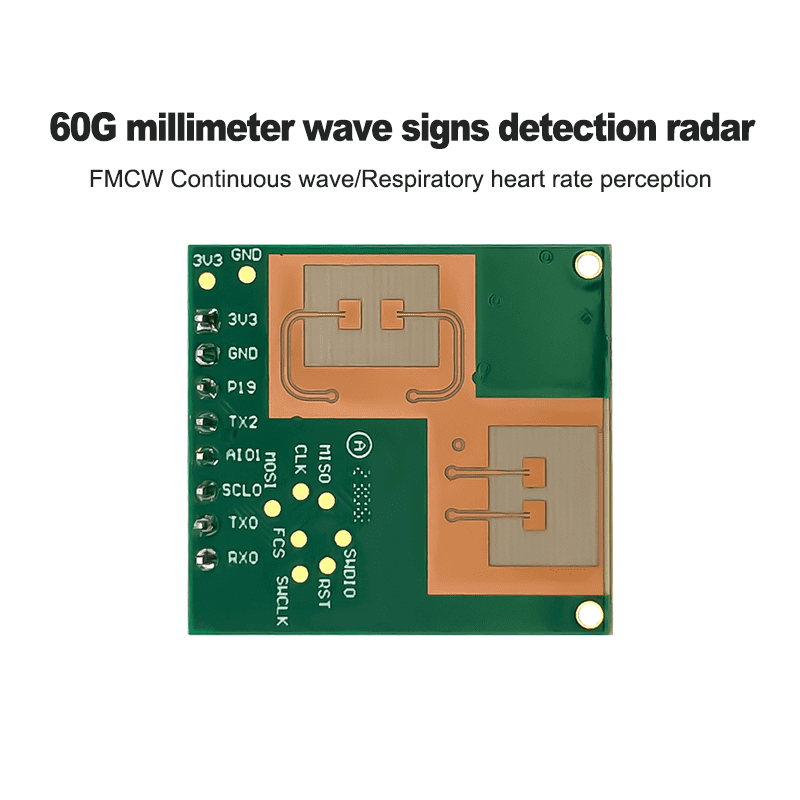

Top view Back view
Pin definition
Pin order number | Pin name | Description | Remarks |
| 1 | 3V3 | POWER INPUT 3.3V | |
| 2 | GND | GND | |
| 3 | P19 | GPIO19 | Boot1 |
| 4 | TX2 | GPIO20 | |
| 5 | AIO1 | Analog IO | |
| 6 | SCL0 | GPIO07 | |
| 7 | TX0 | Connected to external serial port T X | |
| 8 | RX0 | Connected to external serial port RX |
